CDFS17W Series

Catalog

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-17W2, RECEPTACLE, 17 CONTACTS

Part	Dielectric Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Number of Rows [custom]	Contact Finish	Number of Positions	Connector Type	Ingress Protection	Flange Feature	Contact Type	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Features
NorComp Inc. CDFS17W2203L212	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Steel	2	Gold	17	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3

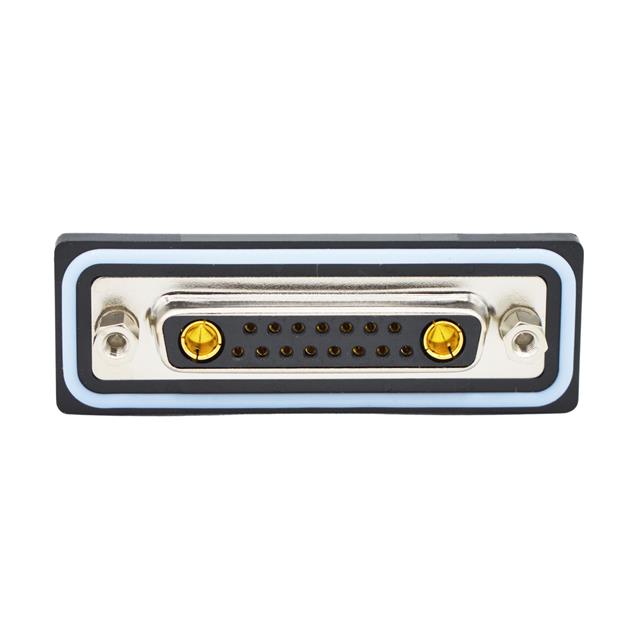

NorComp Inc. CDFS17W2203L411	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0			Nickel Plated Steel	2	Gold	17	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3	Flash

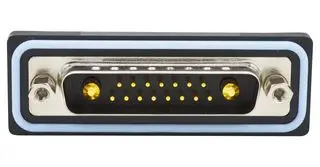

NorComp Inc. CDFS17W2103L212	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Steel	2	Gold	17	Plug Male Pins	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3		Grounding Indents

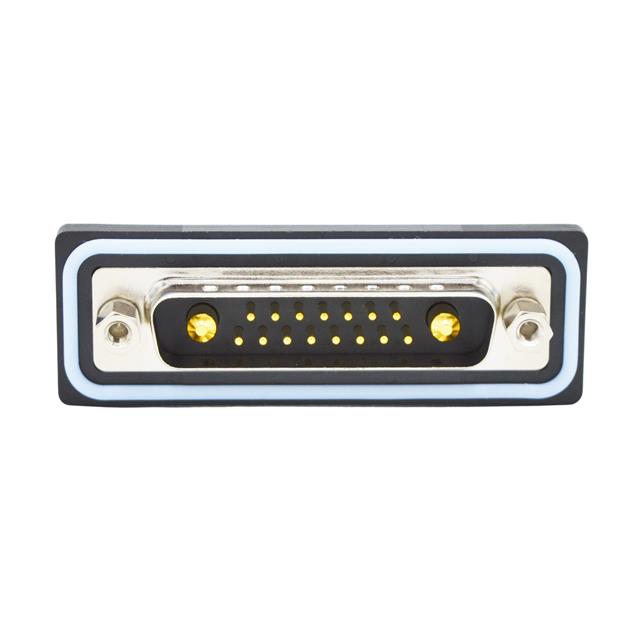

NorComp Inc. CDFS17W2103L411	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0			Nickel Plated Steel	2	Gold	17	Plug Male Pins	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3	Flash	Grounding Indents
NorComp Inc. CDFS17W2103L412	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Steel	2	Gold	17	Plug Male Pins	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3		Grounding Indents

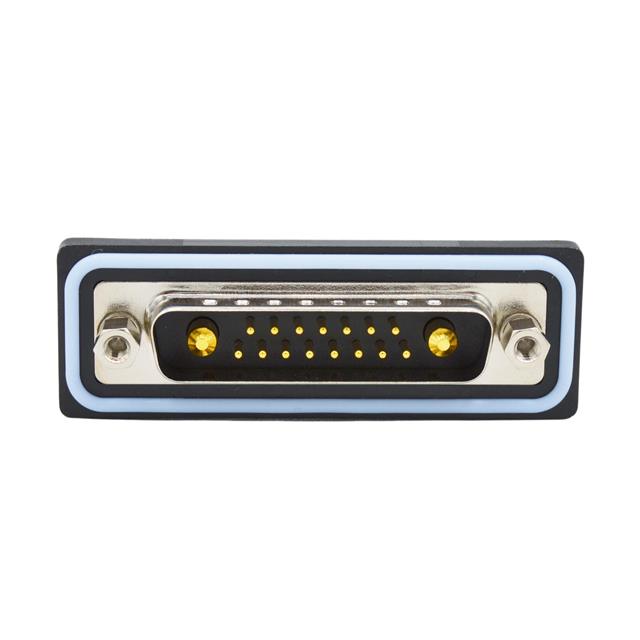

NorComp Inc. CDFS17W2103L211	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0			Nickel Plated Steel	2	Gold	17	Plug Male Pins	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3	Flash	Grounding Indents

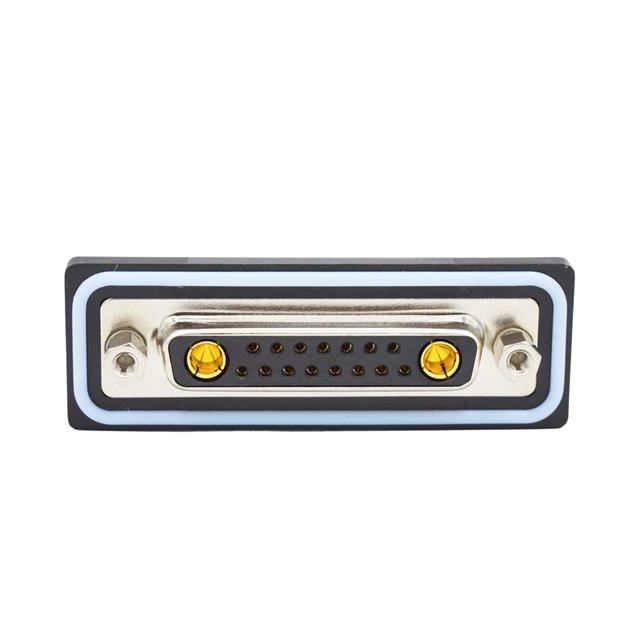

NorComp Inc. CDFS17W2203L211	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0			Nickel Plated Steel	2	Gold	17	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3	Flash
NorComp Inc. CDFS17W2203L412	Polybutylene Terephthalate (PBT)	Brass	85 °C	-25 °C	Panel Mount	UL94 V-0	30 Áin	0.76 Ám	Nickel Plated Steel	2	Gold	17	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Signal and Power	Combo D-Sub	B DB	17W2	3
