JL04V-2A Series
Manufacturer: JAE Electronics
Beta
⌘K

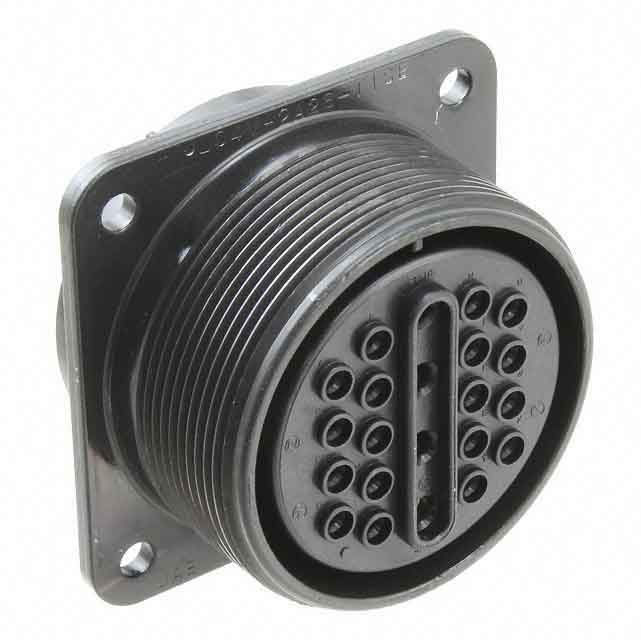

CONN RCPT MALE 22P SOLDER CUP
| Part | Features | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Color | Insert Material | Orientation | Fastening Type | Applications | Contact Finish - Mating | Connector Type | Shell Size - Insert | Number of Positions | Mounting Type | Shell Finish | Current Rating (Amps) | Primary Material | Contact Material | Voltage Rating | Cable Opening | Cable Opening | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Ground | Flange | -55 C | 125 °C | Aluminum Alloy | Black | Silicon Rubber | N (Normal) | Threaded | Industrial Medical Telecommunications Test Equipment & Measurement | Silver | Receptacle Male Pins | 28-11 | 22 | Panel Mount | Zinc | 13 A 23 A | Metal | Copper Alloy | 100 VAC 250 VAC | ||||
JAE Electronics | Ground | Flange | -55 C | 125 °C | Aluminum Alloy | Black | Synthetic Resin | N (Normal) | Threaded | Industrial Medical Telecommunications Test Equipment & Measurement | Silver | Receptacle Female Sockets | 4 | Panel Mount | Zinc | 23 A | Metal | Copper Alloy | 24.85 mm | 0.978 in | 18 | 10 | ||
 JAE Electronics | Ground | Flange | -55 C | 125 °C | Aluminum Alloy | Black | Silicon Rubber | N (Normal) | Threaded | Industrial Medical Telecommunications Test Equipment & Measurement | Silver | Receptacle Female Sockets | 28-11 | 22 | Panel Mount | Zinc | 13 A 23 A | Metal | Copper Alloy | 100 VAC 250 VAC |
