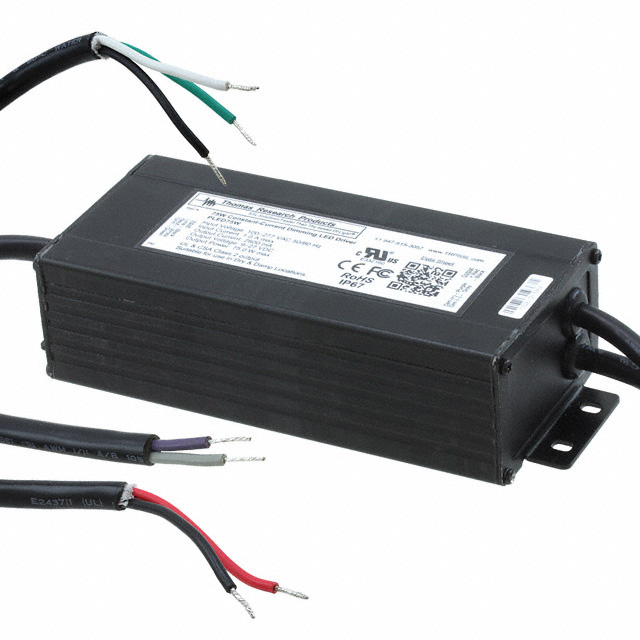

PLED75W Series

Catalog

LED DRIVER CC AC/DC 12-36V 2.1A

Part	Mounting Type	Weight [custom]	Weight [custom]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Approval Agency	Features	Number of Outputs	Topology	Ratings	Voltage - Output [Min]	Voltage - Output [Max]	Efficiency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output
Thomas Research Products PLED75W-036-C2100	Chassis Mount	544.3 g	1.2 lbs	75 W	130 mm	1.47 in	37.3 mm	59.2 mm	2.33 "	5.12 in	Constant Current	305 VAC	90 VAC	2.1 A	CE cULus	OCP OVP SCP	1	AC DC Converter	IP66 NEMA 6	12 V	36 V	89 %	Wire Leads	-30 ░C	65 °C
Thomas Research Products PLED75W-012	Chassis Mount	544.3 g	1.2 lbs	75 W	130 mm	1.47 in	37.3 mm	59.2 mm	2.33 "	5.12 in	Constant Voltage	305 VAC	90 VAC	6.25 A	CE cULus	OCP OVP SCP	1	AC DC Converter	IP66 NEMA 6			86 %	Wire Leads	-30 ░C	65 °C	12 V
