MY2943 Series

Catalog

EMITTER IR 940NM 100MA SMD

Part	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength	Orientation	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Viewing Angle	Qualification	Grade

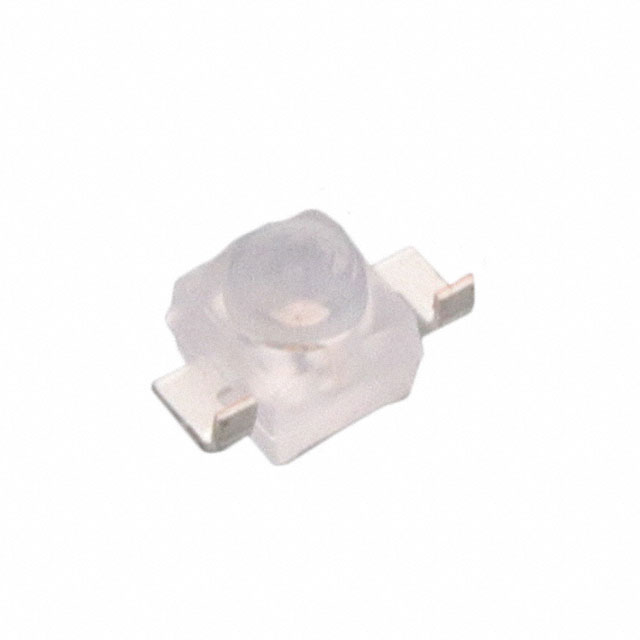

Vishay General Semiconductor - Diodes Division VSMY2943SL	2-SMD Gull Wing	1.55 V	940 nm	Side View	Surface Mount Right Angle	20 mW/sr	100 mA	85 °C	-40 °C	Infrared (IR)
Vishay General Semiconductor - Diodes Division VSMY2943RG	2-SMD Z-Bend	1.4 V	940 nm	Top View	Surface Mount Bottom Entry	27 mW/sr	100 mA	85 °C	-40 °C	Infrared (IR)	54 °
Vishay General Semiconductor - Diodes Division VSMY2943RGX01	2-SMD Z-Bend	2.5 V	940 nm	Top View	Surface Mount Bottom Entry	27 mW/sr	100 mA	85 °C	-40 °C	Infrared (IR)		AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VSMY2943GX01	2-SMD Gull Wing	2.5 V	940 nm	Top View	Surface Mount	27 mW/sr	100 mA	85 °C	-40 °C	Infrared (IR)		AEC-Q101	Automotive
