MC19LOS Series

Catalog

SWITCH CAPACITIVE DPST OFF-ON

Part	Electrical Life	Mechanical Life	Ingress Protection	Type	Illumination Type, Color	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Actuator Type	Circuit	Illumination Voltage (Nominal)	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]

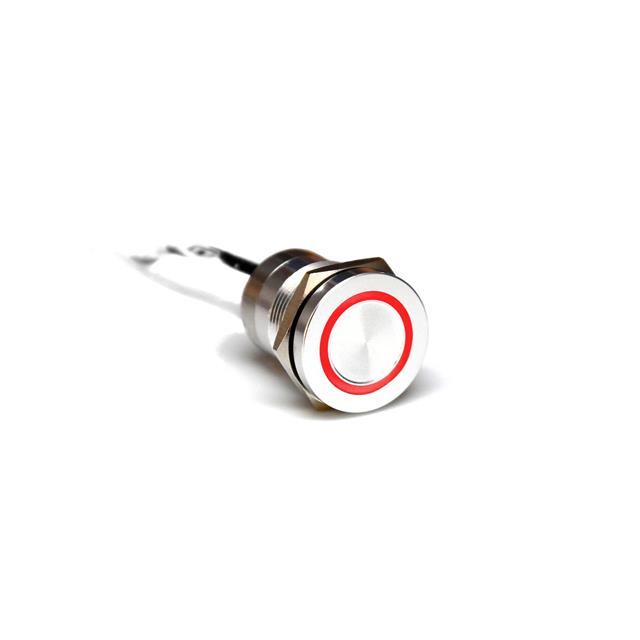

BULGIN LIMITED MC19LOSRD	50 000 000	50000000 Cycles	IP68 IP69K	Capacitive Illuminated	LED Red	Off-On	24 V	19.2 mm	Wire Leads	500 mA	Button Flush Round	SPST-NO	12 VDC	Silver	Panel Mount Front	55 °C	-25 °C
BULGIN LIMITED MC19LOSGN	50 000 000	50000000 Cycles	IP68 IP69K	Capacitive Illuminated	Green LED	Off-On	24 V	19.2 mm	Wire Leads	500 mA	Button Flush Round	SPST-NO	12 VDC	Silver	Panel Mount Front	55 °C	-25 °C

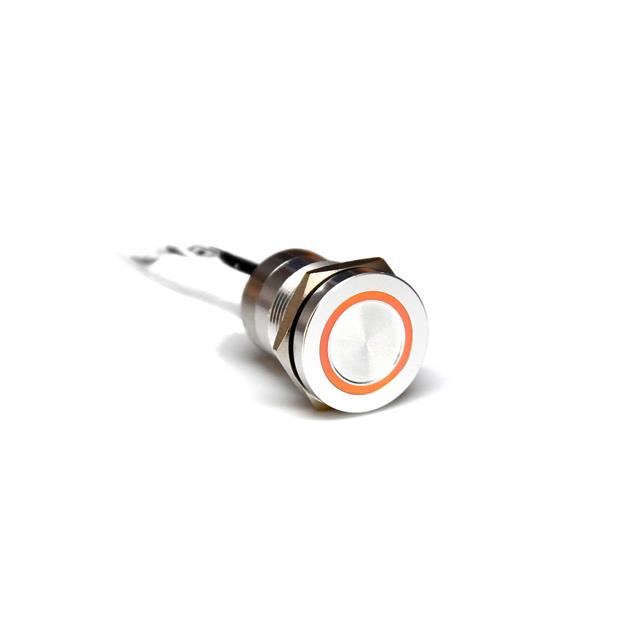

BULGIN LIMITED MC19LOSAM	50 000 000	50000000 Cycles	IP68 IP69K	Capacitive Illuminated	Amber LED	Off-On	24 V	19.2 mm	Wire Leads	500 mA	Button Flush Round	SPST-NO	12 VDC	Silver	Panel Mount Front	55 °C	-25 °C
