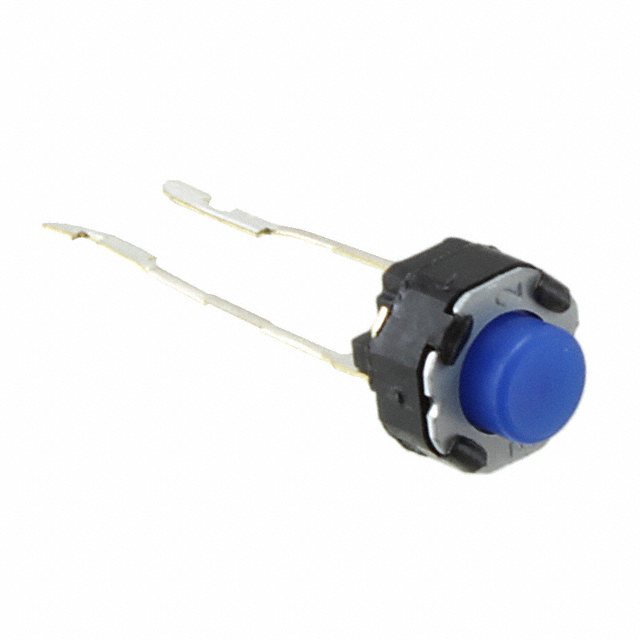

EVQ-11 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Circuit	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Switch Travel	Actuator Orientation	Outline [y]	Outline [x]	Switch Function	Termination Style	Mounting Type	Actuator Type	Contact Rating @ Voltage [x]	Operating Force	Illumination	Actuator Height off PCB, Vertical [z]
Panasonic Industrial Automation Sales EVQ-11V05B	SPST-NO	100000 Cycles	-20 C	70 °C	5 mm	0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	260 gf	Non-Illuminated

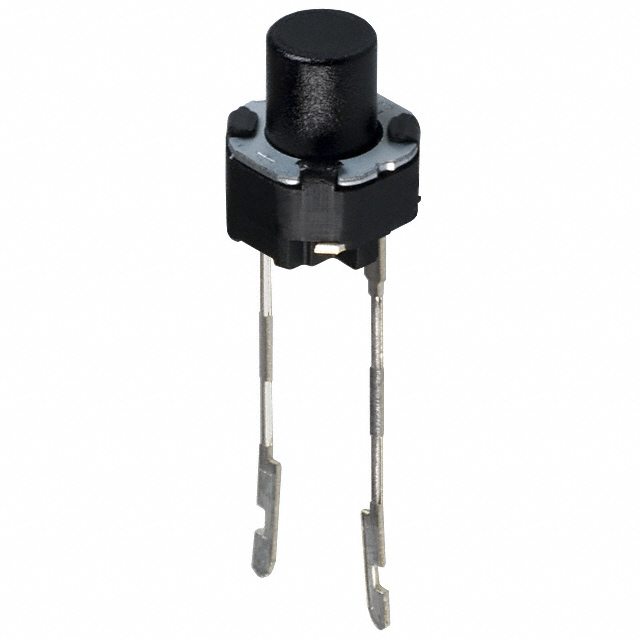

Panasonic Industrial Automation Sales EVQ-11Y07K	SPST-NO	1000000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC		Non-Illuminated	7 mm
Panasonic Industrial Automation Sales EVQ-11D05B	SPST-NO	1000000 Cycles	-20 C	70 °C	5 mm	0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	100 gf	Non-Illuminated
Panasonic Industrial Automation Sales EVQ-11L07K	SPST-NO	100000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC		Non-Illuminated	7 mm
Panasonic Industrial Automation Sales EVQ-11K07K	SPST-NO	1000000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	130 gf	Non-Illuminated	7 mm
Panasonic Industrial Automation Sales EVQ-11D07K	SPST-NO	1000000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	100 gf	Non-Illuminated	7 mm

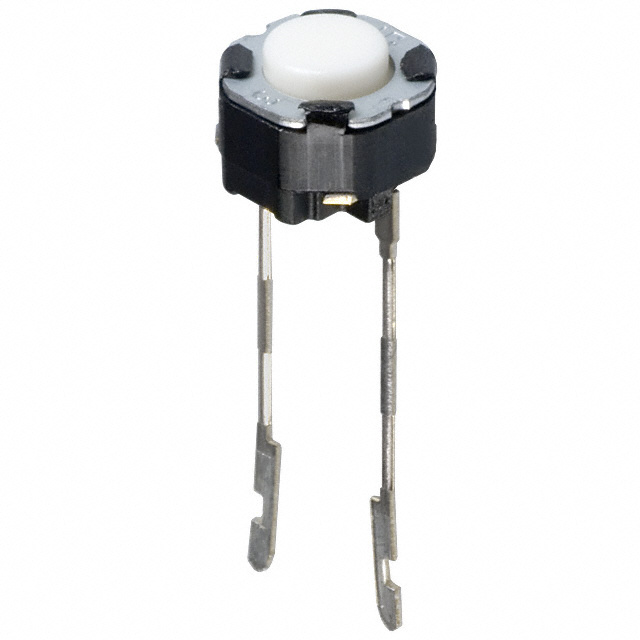

Panasonic Industrial Automation Sales EVQ-11U04M	SPST-NO		-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	260 gf	Non-Illuminated	4.3 mm

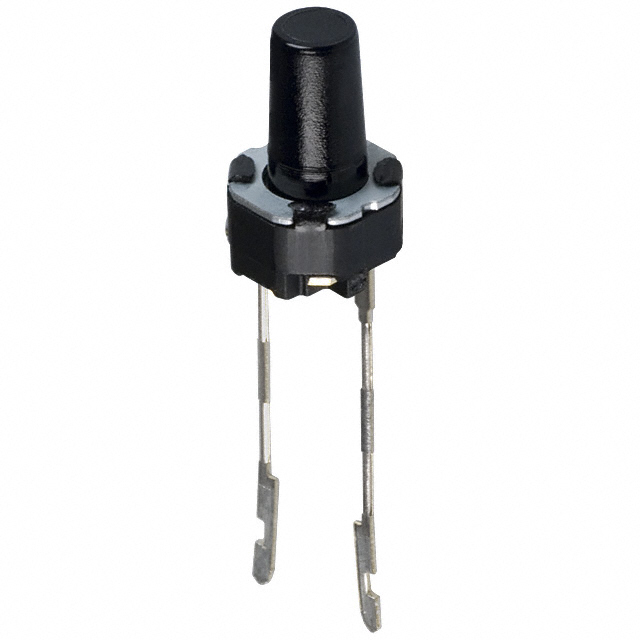

Panasonic Industrial Automation Sales EVQ-11G09K	SPST-NO	100000 Cycles	-20 C	70 °C	9.5 mm	0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	130 gf	Non-Illuminated
Panasonic Industrial Automation Sales EVQ-11V04K	SPST-NO	100000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	260 gf	Non-Illuminated	4.3 mm

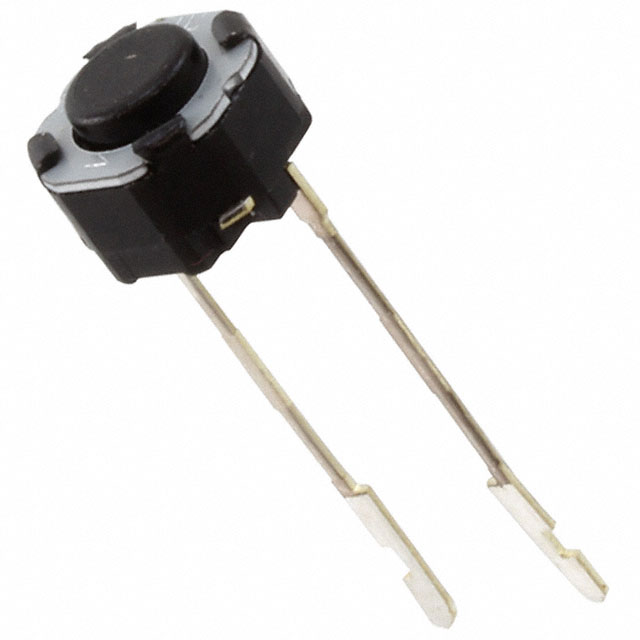

Panasonic Industrial Automation Sales EVQ-11K04K	SPST-NO	1000000 Cycles	-20 C	70 °C		0.25 mm	Top Actuated	6 mm	6 mm	Off-Mom	PC Pin	Through Hole	Standard	0.02 A 15 VDC	130 gf	Non-Illuminated	4.3 mm
