TE90A1503 Series

Catalog

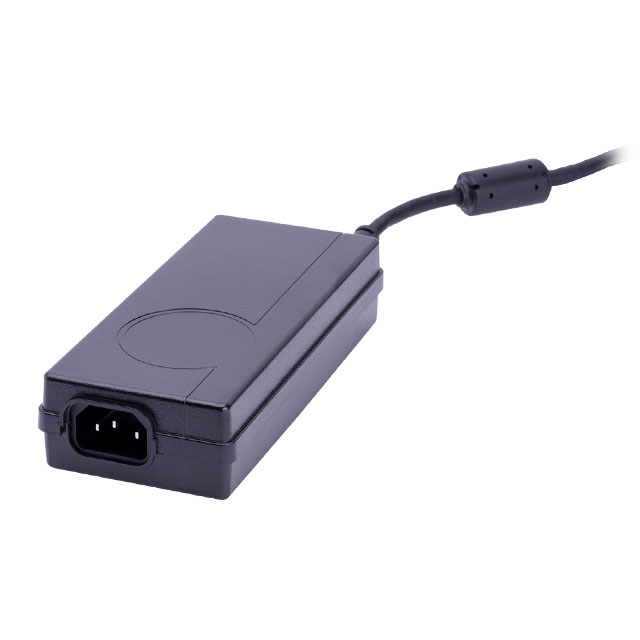

PLUG-IN ADAPTER SINGLE-OUT 15V 6A 90W

Part	Applications	Form	Region Utilized	Current - Output (Max) [Max]	Approval Agency	Input Connector	Polarization	Input Type	Power (Watts)	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
SL POWER / Advanced Energy TE90A1503N01	ITE (Commercial)	Desktop (Class II)	International	6 A	CE	IEC 320-C8	Positive Center	Cord (Sold Separately)	90 W	15 V	264 VAC	90 VAC	1.15 m	45.3 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	150 mW	-20 ░C	70 °C	CoC Tier 2 Level VI	1.36 in	34.5 mm	153 mm	2.68 in	68 mm	6.02 in
SL POWER / Advanced Energy TE90A1503F01	ITE (Commercial)	Desktop (Class I)	International	6 A	CE	IEC 320-C14	Positive Center	Cord (Sold Separately)	90 W	15 V	264 VAC	90 VAC	1.15 m	45.3 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	150 mW	-20 ░C	70 °C	CoC Tier 2 Level VI	1.36 in	34.5 mm	153 mm	2.68 in	68 mm	6.02 in
SL POWER / Advanced Energy TE90A1503Q01	ITE (Commercial)	Desktop (Class II)	International	6 A	CE	IEC 320-C18	Positive Center	Cord (Sold Separately)	90 W	15 V	264 VAC	90 VAC	1.15 m	45.3 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	150 mW	-20 ░C	70 °C	CoC Tier 2 Level VI	1.36 in	34.5 mm	153 mm	2.68 in	68 mm	6.02 in
