9839 Series
Manufacturer: Belden Inc.
Beta
⌘K

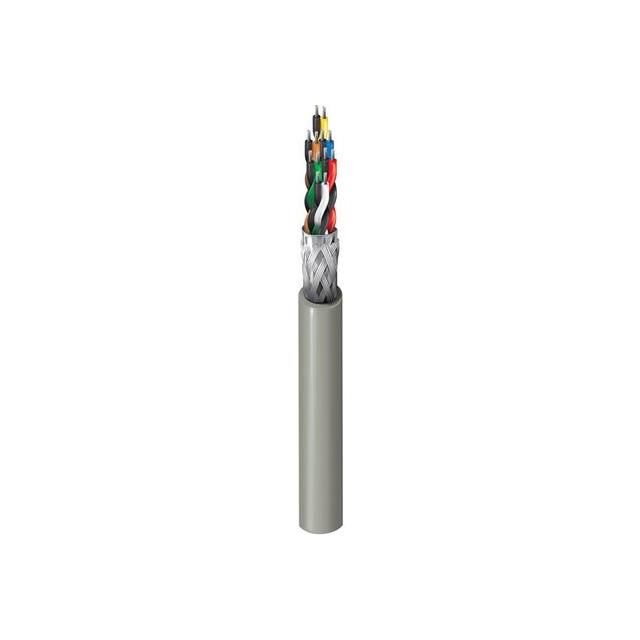

MULTI-PAIR 12COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Number of Conductors | Conductor Material | Length | Length | Cable Type | Usage | Jacket Color | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | Drain Wire | 0.035 in | 0.889 mm | Polyethylene (PE) | 12 | Copper Tinned | 152.4 m | 500 ft | Multi-Pair | Computer | Chrome | 24 AWG | 80 °C | -30 ░C | UL Style 2919 |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | Drain Wire | 0.035 in | 0.889 mm | Polyethylene (PE) | 12 | Copper Tinned | 304.8 m | 1000 ft | Multi-Pair | Computer | Chrome | 24 AWG | 80 °C | -30 ░C | UL Style 2919 |
