85164 Series
Manufacturer: Belden Inc.
Beta
⌘K

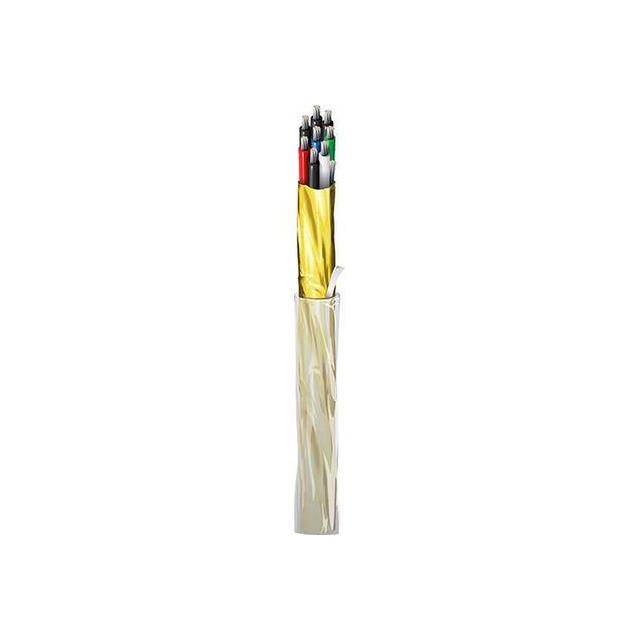

MULTI-PAIR 8CON 20AWG CLR
| Part | Shield Coverage | Shield Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Wire Gauge | Conductor Insulation | Shield Type | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket (Insulation) Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Audio Control Instrumentation | 28 AWG | 7 | 8.74 mm | 0.344 " | 8 | 20 AWG | Ethylene Tetrafluoroethylene (ETFE) | Foil | Copper Tinned | Multi-Pair | 0.635 mm | 0.025 in | Drain Wire | -60 °C | 150 °C | 304.8 m | 1000 ft | Ethylene Tetrafluoroethylene (ETFE) | Clear |
