LC2H Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

COUNTER LCD 8 CHAR 24V PANEL MT

Part	Output Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Mode	Reset	Count Rate	Input Type	Voltage - Supply	Type	Termination Style	Ingress Protection	Voltage - Supply
Panasonic Industrial Automation Sales LC2HP-FEW-B-DC24V	Solid State	22.2 mm	45 mm	LCD - Black Characters Backlight	8	8.7 mm	0.343 in	55 °C	-10 °C	Down Up	External Front Panel	5 kHz 30 Hz	No Voltage	24 VDC	Preset	Screw Terminal	IP66

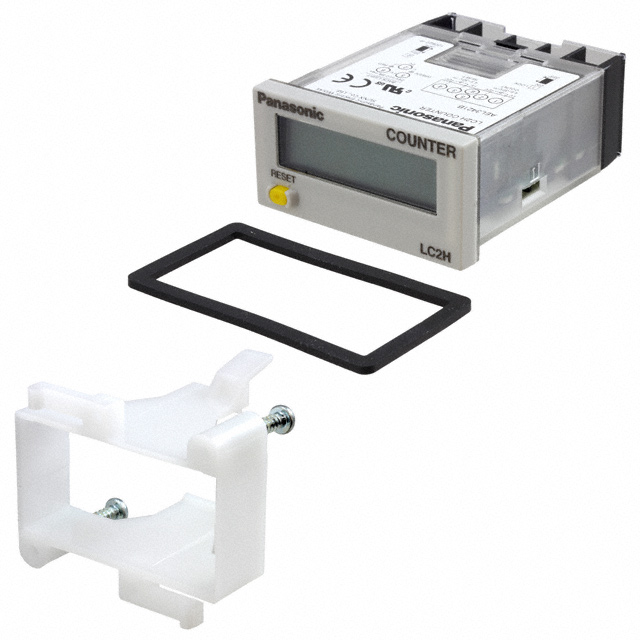

Panasonic Industrial Automation Sales LC2H-F-DL-2KK-B		22 mm	45 mm	LCD - Black Characters	8	8.7 mm	0.343 in	55 °C	-10 °C	Up	External Front Panel	2 kHz 30 Hz	Voltage		Totalizer	Screw Terminal	IP66	None Required (Battery Included)
Panasonic Industrial Automation Sales LC2H-F-DL-2KK		22.2 mm	45 mm	LCD - Black Characters	8	8.7 mm	0.343 in	55 °C	-10 °C	Up	External Front Panel	2 kHz 30 Hz	Voltage		Totalizer	Screw Terminal	IP66	None Required (Battery Included)
Panasonic Industrial Automation Sales LC2H-FE-FV-30		22.2 mm	45 mm	LCD - Black Characters	8	8.7 mm	0.343 in	55 °C	-10 °C	Up	External Front Panel	30 Hz	Voltage		Totalizer	Screw Terminal	IP66	None Required (Battery Included)
Panasonic Industrial Automation Sales LC2H-F-FV-30		22.2 mm	45 mm	LCD - Black Characters	8	8.7 mm	0.343 in	55 °C	-10 °C	Up	External Front Panel	30 Hz	Voltage		Totalizer	Screw Terminal	IP66	None Required (Battery Included)

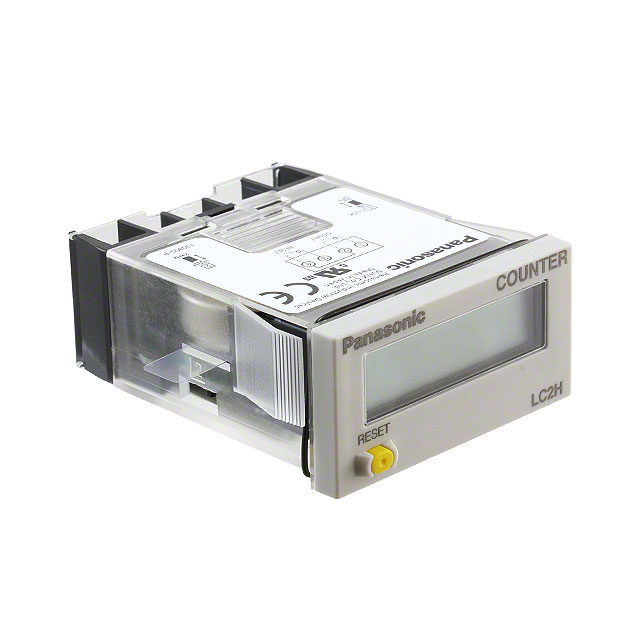

Panasonic Industrial Automation Sales LC2H-FE-2KK		22.2 mm	45 mm	LCD - Black Characters	8	8.7 mm	0.343 in	55 °C	-10 °C	Up	External Front Panel	2 kHz 30 Hz	No Voltage		Totalizer	Screw Terminal	IP66	None Required (Battery Included)
