LHB-10 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 10POS 3.96MM
| Part | Fastening Type | Style | Number of Positions | Contact Type | Contact Shape | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Color | Connector Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Number of Positions Loaded | Contact Material | Contact Length - Post [x] | Contact Length - Post | Voltage Rating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Number of Rows | Current Rating (Amps) | Mounting Type | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

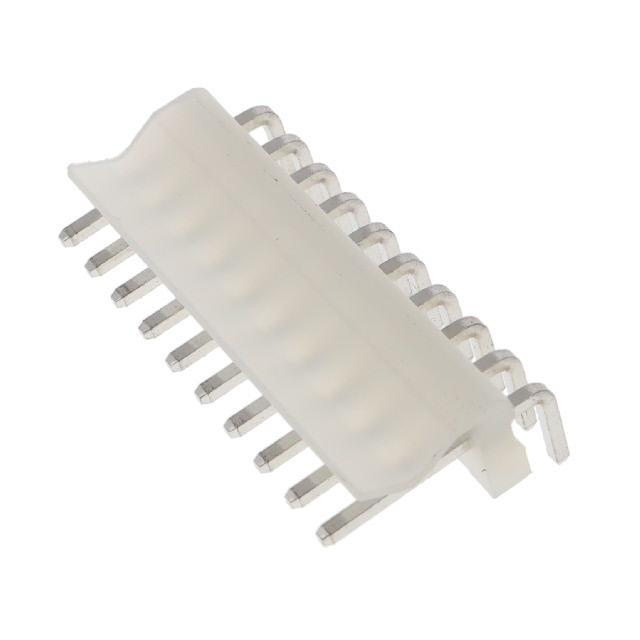

 Adam Tech | Friction Lock | Board to Cable/Wire | 10 | Male Pin | Square | 11.3 mm | 0.445 in | Shrouded - 1 Wall | White | Header | UL94 V-2 | 85 °C | -25 °C | Nylon 6/6 Polyamide (PA66) | All | Brass | 0.134 " | 3.4 mm | 250 VAC | Tin | 3.96 mm | 0.156 in | Solder | 1 | 5 A | Right Angle Through Hole | |||||

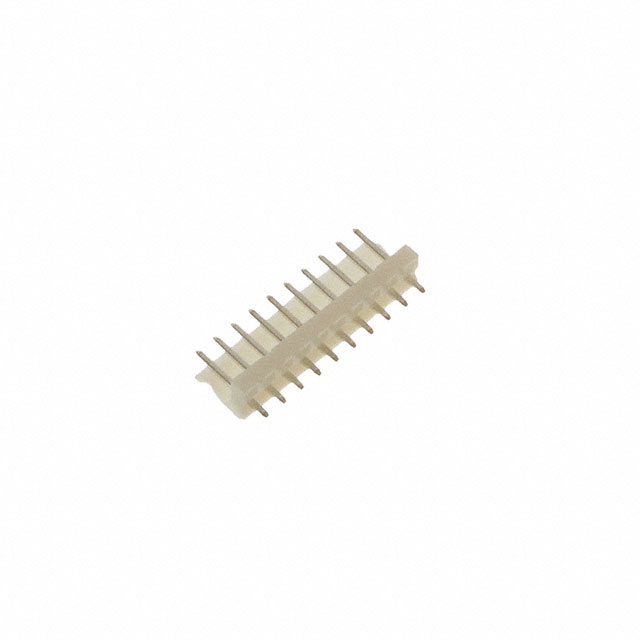

 Adam Tech | Friction Lock | Board to Cable/Wire | 10 | Male Pin | Square | 1.04 mm | 0.041 in | Shrouded - 1 Wall | White | Header | UL94 V-2 | 85 °C | -25 °C | Nylon 6/6 Polyamide (PA66) | All | Brass | 3.68 mm | 250 VAC | Tin | 3.96 mm | 0.156 in | Solder | 1 | 5 A | Through Hole | 12.8 mm | 0.504 " | 17.53 mm | 0.69 in | 0.145 in |
