896-070 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 70POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions/Bay/Row	Read Out	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Contact Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Termination	Number of Positions	Color	Gender	Number of Rows [custom]	Features
EDAC Inc. 896-070-540-203	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Wire Wrap	70	Black	Female	2
EDAC Inc. 896-070-521-812	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	70	Black	Female	2
EDAC Inc. 896-070-555-201	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy				Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder Eyelet(s)	70	Black	Female	2	Card Extender
EDAC Inc. 896-070-500-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	70	Black	Female	2

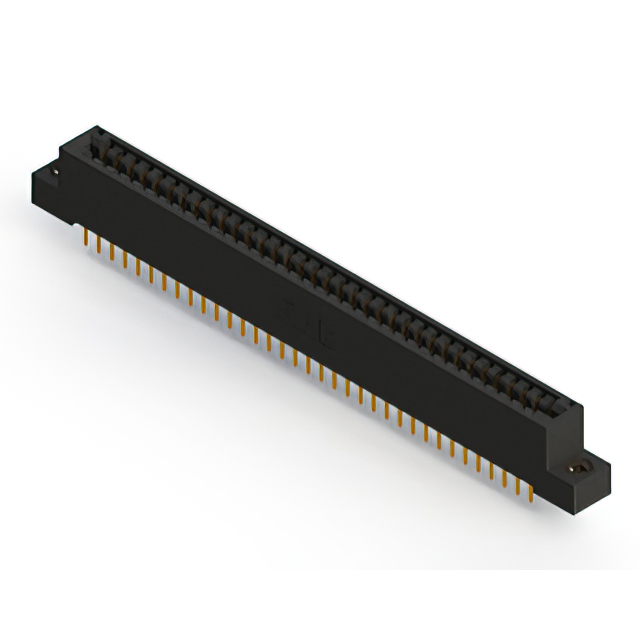

EDAC Inc. 896-070-521-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	70	Black	Female	2
EDAC Inc. 896-070-500-203	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	70	Black	Female	2
EDAC Inc. 896-070-559-203	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	70	Black	Female	2
EDAC Inc. 896-070-555-203	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder Eyelet(s)	70	Black	Female	2	Card Extender
EDAC Inc. 896-070-500-808	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy		4-40 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	70	Black	Female	2
EDAC Inc. 896-070-500-803	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	125 °C	-40 C	Gold	35	Dual	Copper Alloy	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	Non Specified - Dual Edge	Cantilever	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	70	Black	Female	2
