A21 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 4.25"L X 2.6"W

Part	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Color	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Material Flammability Rating	Material	Thickness	Thickness	Design	Features	Height	Height

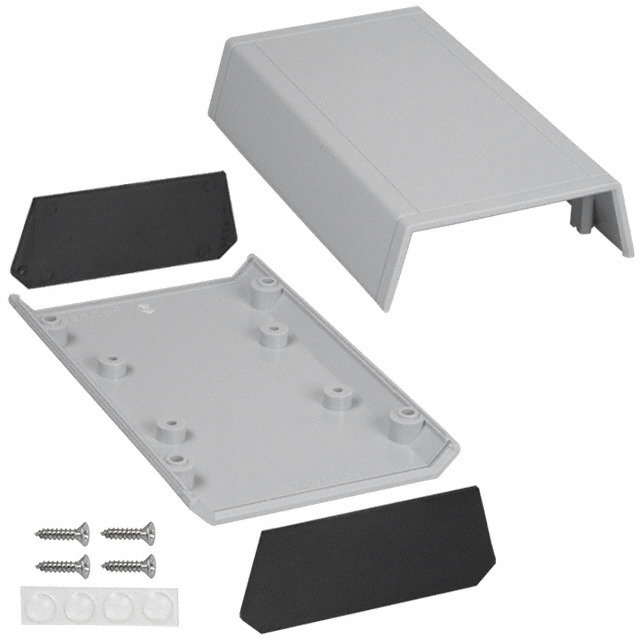

Serpac A21,GY	45.81 g	0.101 lb	11.2 in²	72 cm²	Gray	IP40	107.95 mm	66.04 mm	2.6 in	4.25 in	Box	UL94 HB	ABS Plastic	1.78 mm	0.07 in	Split Sides and End Panel(s)	PCB Supports	1.12 in	28.45 mm

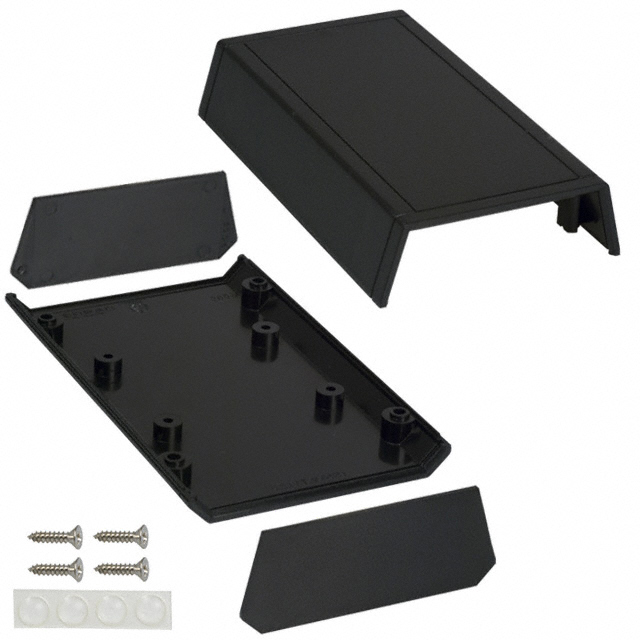

Serpac A21,BK	45.81 g	0.101 lb	11.2 in²	72 cm²	Black	IP40	107.95 mm	66.04 mm	2.6 in	4.25 in	Box	UL94 HB	ABS Plastic	1.78 mm	0.07 in	Split Sides and End Panel(s)	PCB Supports	1.12 in	28.45 mm

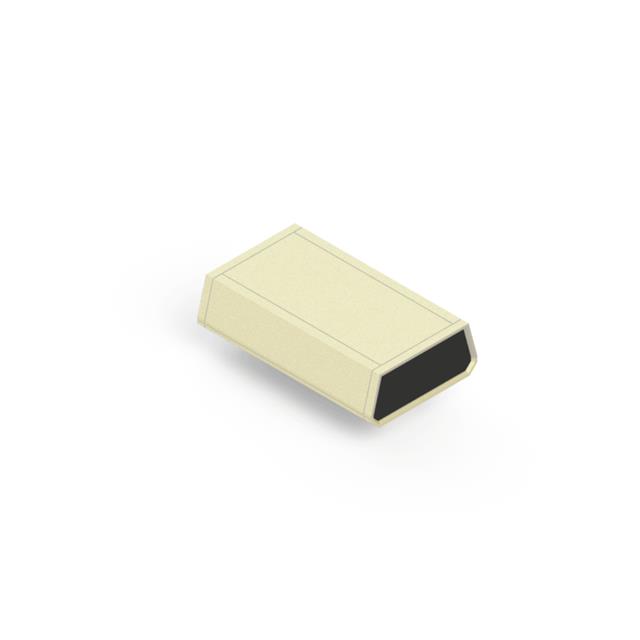

Serpac A21,AL	45.81 g	0.101 lb	11.2 in²	72 cm²	Almond	IP40	107.95 mm	66.04 mm	2.6 in	4.25 in	Box	UL94 HB	ABS Plastic	1.78 mm	0.07 in	Split Sides and End Panel(s)	PCB Supports	1.12 in	28.45 mm
