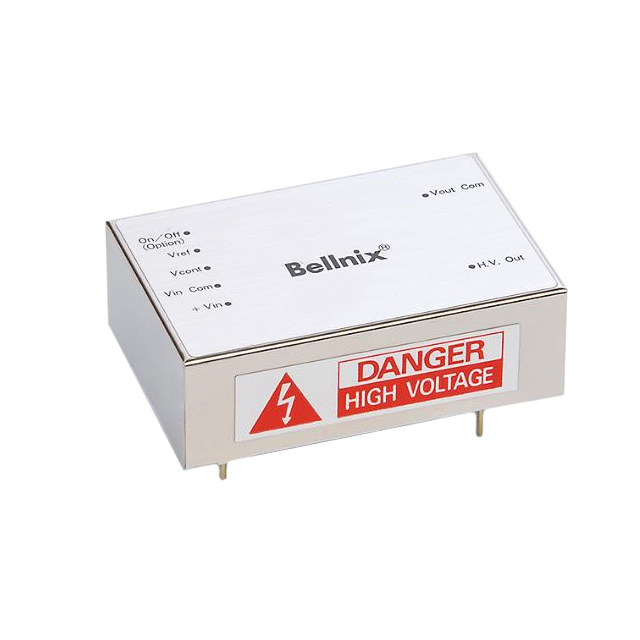

PHV12 Series
Manufacturer: Bellnix Co., Ltd.
Beta
⌘K

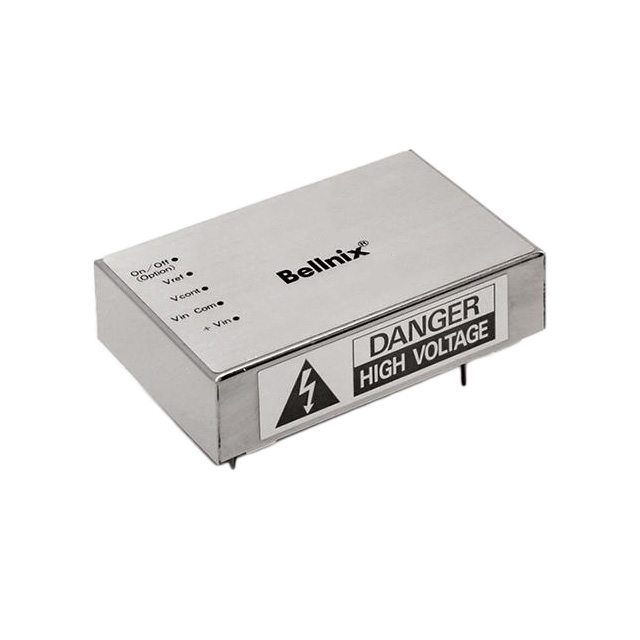

DC DC CONVERTER -350V 3.5W
| Part | Number of Outputs | Applications | Features | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Power (Watts) | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Package / Case | Voltage - Input (Max) [Max] | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 10 mA | 10.8 V | 68 % | 3.5 W | High Voltage - Non-Isolated Module | 0.59 in | 60 mm | 15 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active Low Enable | -10 °C | 50 °C | -350 V |
 Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 5 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active High Enable | -10 °C | 50 °C | 1000 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 2.5 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active High Enable | -10 °C | 50 °C | 2000 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 10 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active Low Enable | -10 °C | 50 °C | -500 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 2.5 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active Low Enable | -10 °C | 50 °C | -2000 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 10 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active High Enable | -10 °C | 50 °C | 500 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 10 mA | 10.8 V | 68 % | 3.5 W | High Voltage - Non-Isolated Module | 0.59 in | 60 mm | 15 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active High Enable | -10 °C | 50 °C | 350 V |
Bellnix Co., Ltd. | 1 | ITE (Commercial) | Adjustable Output Remote On/Off | 5 mA | 10.8 V | 72 % | 5 W | High Voltage - Non-Isolated Module | 0.79 in | 60 mm | 20 mm | 40 mm | 1.57 " | 2.36 " | Through Hole | 7-DIP Module 6 Leads | 16.5 V | Active Low Enable | -10 °C | 50 °C | -1000 V |
