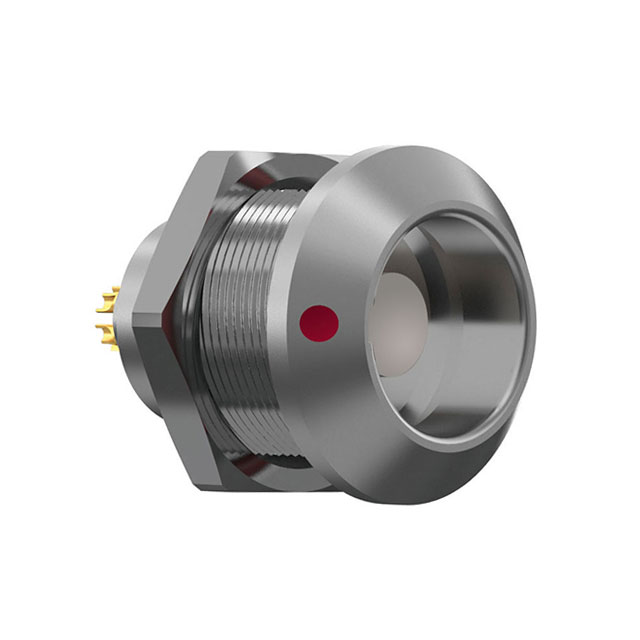

G11K0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Current Rating (Amps) | Fastening Type | Orientation | Mounting Feature | Shielding | Shell Finish | Number of Positions | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish - Mating | Mounting Type | Primary Material | Shell Material | Contact Material | Ingress Protection | Shell Size - Insert | Features | Connector Type | Insert Material | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12 Amps | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 2 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | |||
7.5 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 4 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 500 V | ||
15 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 2 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 550 VDC | Crimp | |
7.5 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 4 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | |||
4 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 16 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount Through Hole | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 200 V | Solder | |
10 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 5 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 333 V | ||
7.5 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 6 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | |||
4 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Chrome over Nickel | 16 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | ||||
12 Amps | Push-Pull | 0 | Bulkhead - Rear Side Nut | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | |||||
7.5 A | Push-Pull | 0 | Bulkhead - Rear Side Nut | Shielded | Chrome over Nickel | 4 | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Silver | Gold | Panel Mount Through Hole | Metal | Brass | Brass | IP68 - Dust Tight Waterproof | 1 | Ground | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 333 V | Solder |
