M83513/10 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

D SUB CONNECTOR, MICRO D, PLUG, MIL-DTL-83513 SERIES, 31 CONTACTS, SOLDER

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Backset Spacing	Backset Spacing	Material Flammability Rating	Connector Style	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Shell Material, Finish	Flange Feature	Connector Type	Termination	Contact Finish	Contact Type	Number of Positions	Number of Rows [custom]
Cinch Connectivity Solutions M83513/10-E01NP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.13 in	3.3 mm	UL94 V-0	D-Type Micro-D	31	50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Electroless Nickel Plated	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal

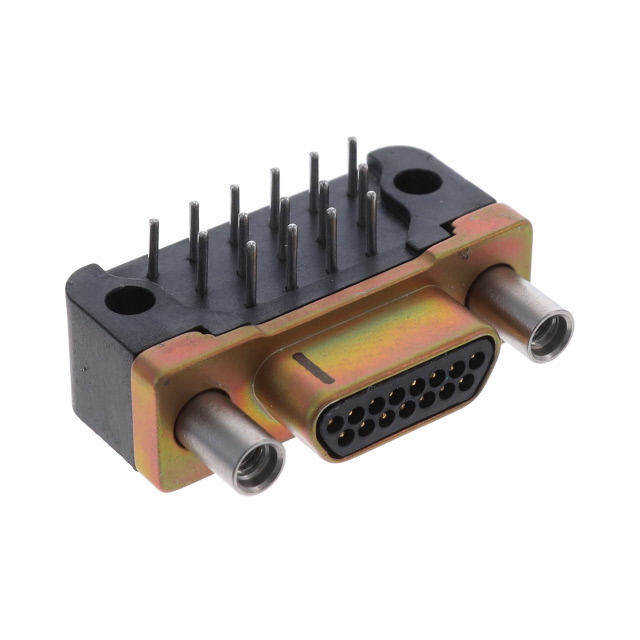

Cinch Connectivity Solutions M83513/10-B01CP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.13 in	3.3 mm	UL94 V-0	D-Type Micro-D		50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Yellow Chromate Plated Cadmium	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal	15	3
Cinch Connectivity Solutions M83513/10-B01NP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.13 in	3.3 mm	UL94 V-0	D-Type Micro-D		50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Electroless Nickel Plated	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal	15	3
Cinch Connectivity Solutions M83513/10-C01CP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.13 in	3.3 mm	UL94 V-0	D-Type Micro-D		50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Yellow Chromate Plated Cadmium	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal	21	3
Cinch Connectivity Solutions M83513/10-A01NP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.23 in	5.84 mm	UL94 V-0	D-Type Micro-D		50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Electroless Nickel Plated	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal	9	2
Cinch Connectivity Solutions M83513/10-D01NP	Polyester Glass Filled	Copper Alloy	-55 C	125 °C	Right Angle Through Hole	0.13 in	3.3 mm	UL94 V-0	D-Type Micro-D		50 µin	1.27 µm	3 A	0.043 in	0.05 in	Aluminum Alloy Electroless Nickel Plated	Mating Side Female Screwlock (2-56)	Plug Male Pins	Solder	Gold	Signal	25	3
