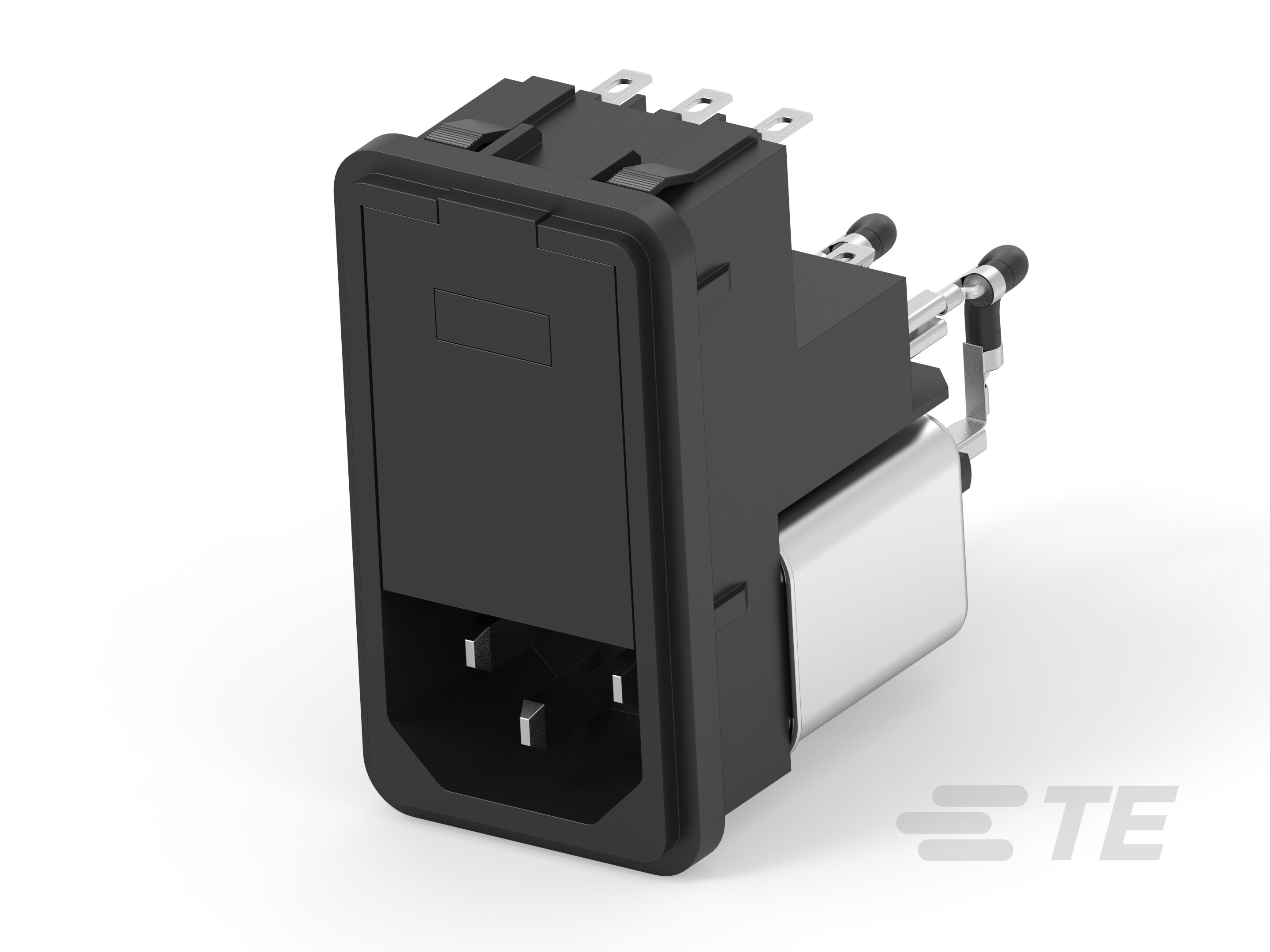

Schaffner FN370 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Approval Agency | Material Flammability Rating | Accomodates a Fuse | Termination | Ingress Protection | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Current Rating - Filter | Filter Type | Panel Cutout Dimensions | Fuse Holder, Drawer | Connector Type | Connector Style | Mounting Type | Features | Switch Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 4 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Front or Rear Side Mount Voltage Selector | ||
 TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 6 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Panel Mount Snap-In | Voltage Selector | ||
 TE Connectivity AMP Connectors | ||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||
 TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 6 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Front or Rear Side Mount Voltage Selector | ||
 TE Connectivity AMP Connectors | CE CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 6 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Front or Rear Side Mount Voltage Selector | ||
TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 4 A | Filtered (EMI RFI) - Commercial | Variable Size | Fuse Holder | Receptacle Male Blades - Module | IEC 320-C14 | Panel Mount Snap-In | Voltage Selector | ||
 TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 6 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Front or Rear Side Mount Voltage Selector | ||
 TE Connectivity AMP Connectors | CSA UL VDE | UL94 V-2 | Quick Connect | IP40 | 0.031 " | 0.79 mm | 0.126 in | 3.2 mm | 6 A | Filtered (EMI RFI) - Commercial Medical | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Bleed Resistor Front or Rear Side Mount Voltage Selector | ||
TE Connectivity AMP Connectors | CE CSA UL VDE | UL94 V-2 | Solder Eyelet | IP40 | 2.4 A | Filtered (EMI RFI) - Commercial | Variable Size | Twin Fused | Receptacle Male Blades - Module | IEC 320-C14 | Flange Panel Mount | Front or Rear Side Mount | Switch On-Off |
