09120023 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 1+PE CONTACTS, 3A, RECEPTACLE

Part	Color	Material Flammability Rating	Housing Material	Size	Contact Type	Number of Positions	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Voltage Rating	Current Rating (Amps)	Number of Positions

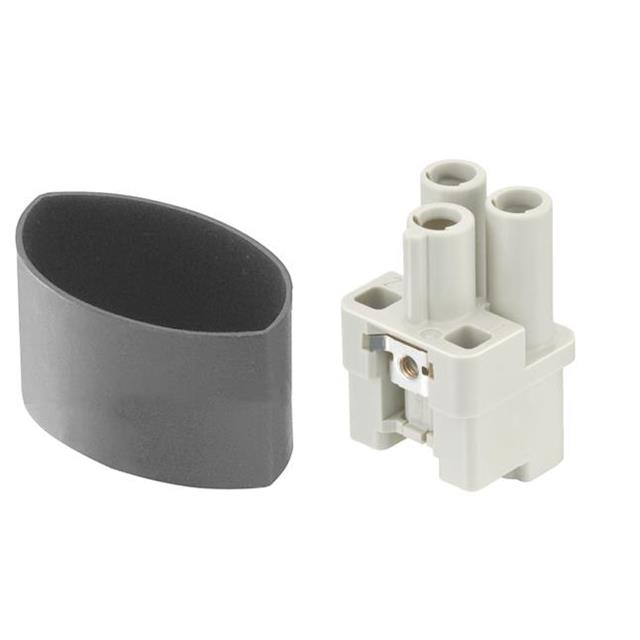

HARTING 09120023152	Gray	UL94 V-0	Polycarbonate (PC)	3 A	Han® C	2+Ground	Crimp	Female	125 °C	-40 C	Insert without Contacts	830 V	40 A

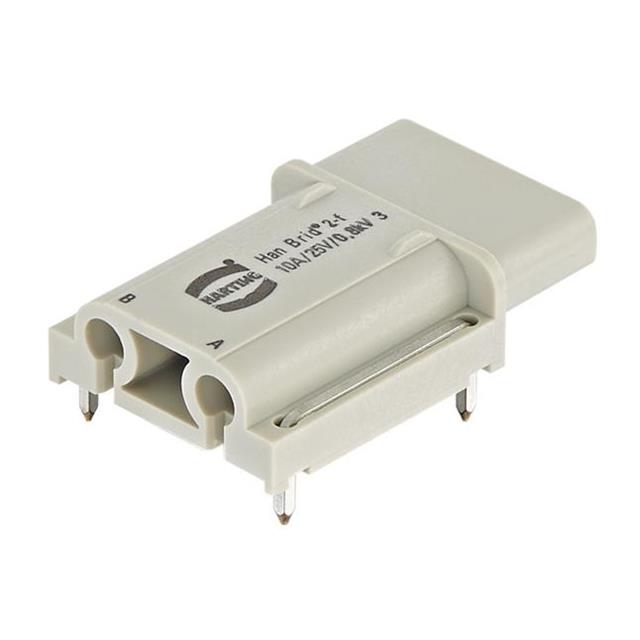

HARTING 09120023101	Gray	UL94 V-0	Polycarbonate (PC)	3 A	Han® D		Crimp	Female	125 °C	-40 C	Module without Contacts	50 V	10 A	2

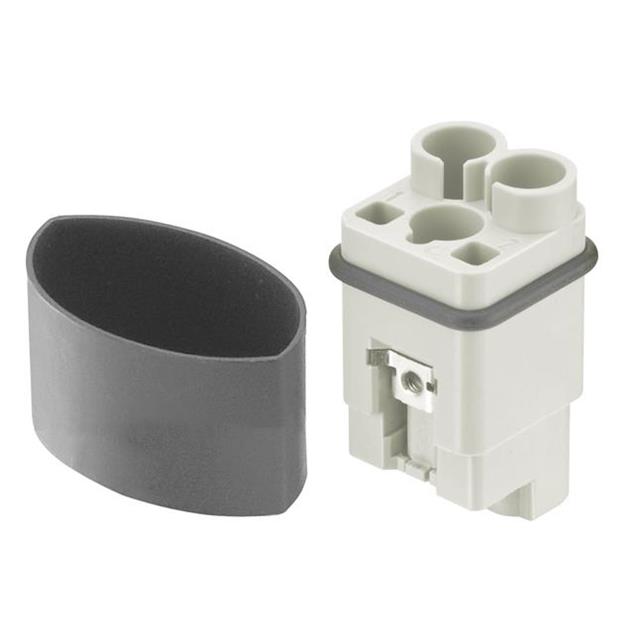

HARTING 09120023052	Gray	UL94 V-0	Polycarbonate (PC)	3 A	Han® C	2+Ground	Crimp	Male	125 °C	-40 C	Insert without Contacts	830 V	40 A
HARTING 09120023051	Gray	UL94 V-0	Polycarbonate (PC)	3 A	Han® C	2+Ground	Crimp	Male	125 °C	-40 C	Insert without Contacts	400 V	40 A
HARTING 09120023151	Gray	UL94 V-0	Polycarbonate (PC)	3 A	Han® C	2+Ground	Crimp	Female	125 °C	-40 C	Insert without Contacts	400 V	40 A

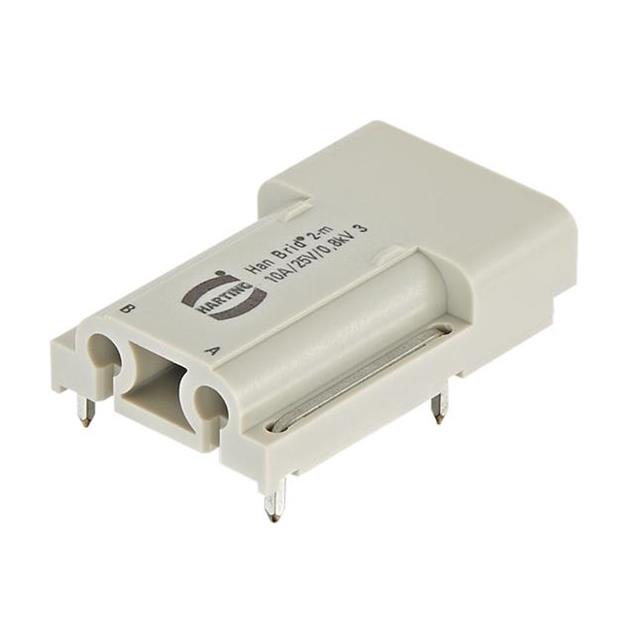

HARTING 09120023011	Gray		Polycarbonate (PC)	3 A	Han® D		Crimp	Male	125 °C	-40 C	Module without Contacts	50 V	10 A	2
