PRPC025 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Mating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Fastening Type	Shrouding	Style	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Contact Material	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length
Sullins Connector Solutions PRPC025DABN-RC	Flash	Male Pin	Black	0.1 in	2.54 mm	50	Gold	Square	0.558 in	14.18 mm	Gold	Push-Pull	Unshrouded	Board to Board Cable	2	5.84 mm	0.23 "	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm

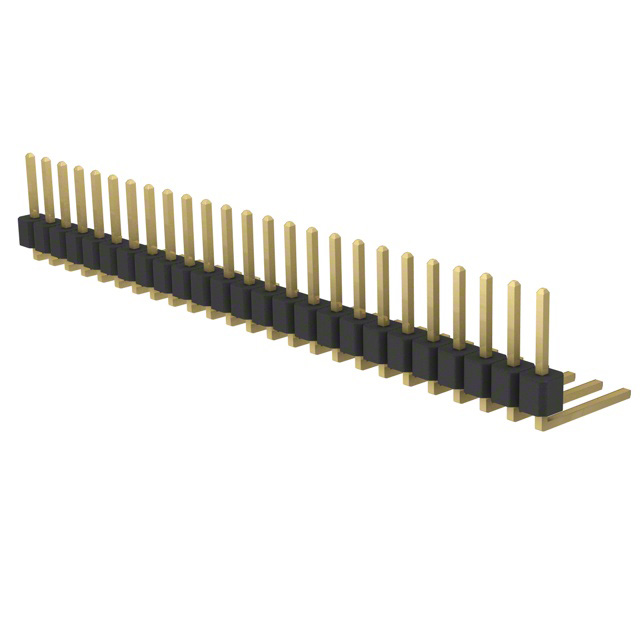

Sullins Connector Solutions PRPC025SBCN-M71RC	Flash	Male Pin	Black			25	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable		8.13 mm	0.32 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Right Angle Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm	1

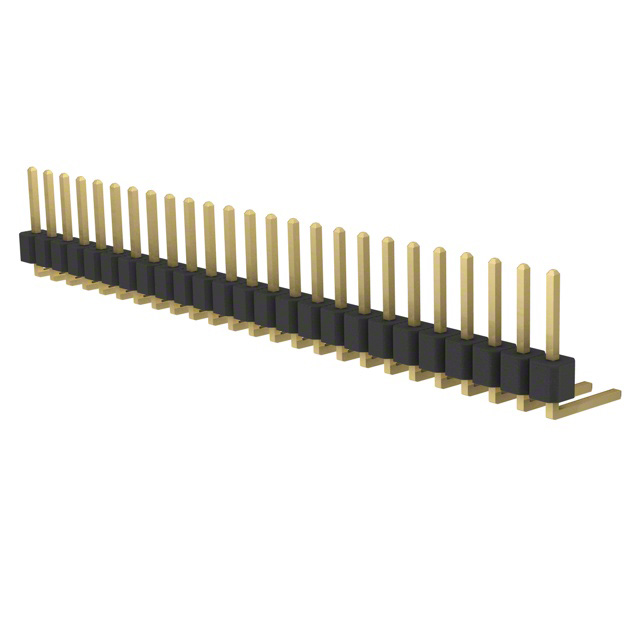

Sullins Connector Solutions PRPC025SBBN-M71RC	Flash	Male Pin	Black			25	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable		5.58 mm	0.22 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Right Angle Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm	1
Sullins Connector Solutions PRPC025SFAN-RC	Flash	Male Pin	Black			25	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable		3.05 mm	0.12 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.318 in	8.08 mm	1	13.63 mm	0.537 in
Sullins Connector Solutions PRPC025DFAN-RC	Flash	Male Pin	Black	0.1 in	2.54 mm	50	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable	2	3.05 mm	0.12 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.318 in	8.08 mm		13.63 mm	0.537 in

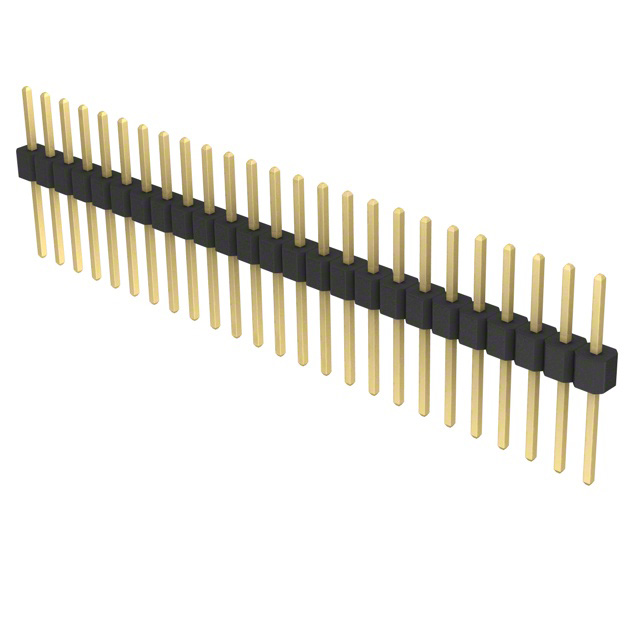

Sullins Connector Solutions PRPC025SACN-RC	Flash	Male Pin	Black			25	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable		8.13 mm	0.32 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm	1	16.47 mm	0.648 in
Sullins Connector Solutions PRPC025SAAN-RC	Flash	Male Pin	Black			25	Gold	Square	0.448 in	11.39 mm	Gold	Push-Pull	Unshrouded	Board to Board Cable		3.05 mm	0.12 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm	1

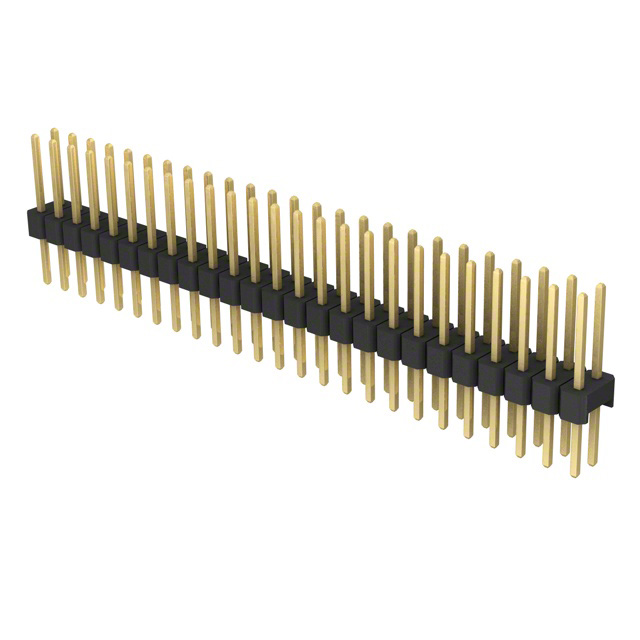

Sullins Connector Solutions PRPC025DFBN-RC	Flash	Male Pin	Black	0.1 in	2.54 mm	50	Gold	Square		0.637 in	Gold	Push-Pull	Unshrouded	Board to Board Cable	2	5.58 mm	0.22 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.318 in	8.08 mm				16.17 mm

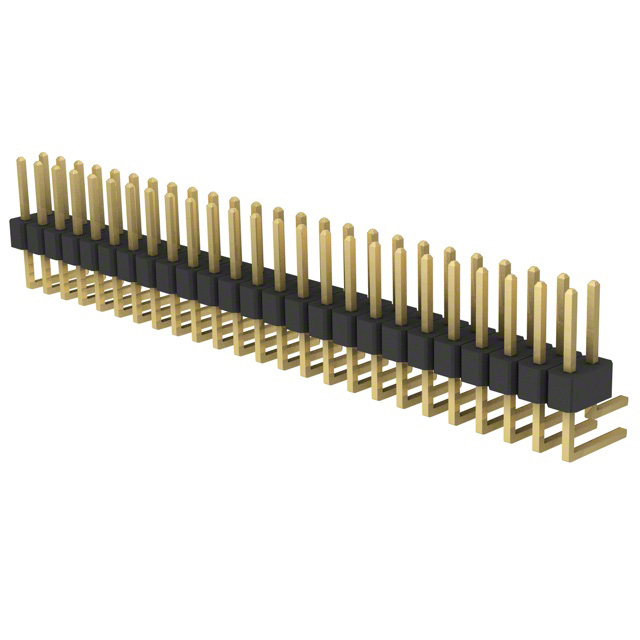

Sullins Connector Solutions PRPC025DBAN-M71RC	Flash	Male Pin	Black	0.1 in	2.54 mm	50	Gold	Square			Gold	Push-Pull	Unshrouded	Board to Board Cable	2	3.05 mm	0.12 in	0.197 "	5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Right Angle Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm

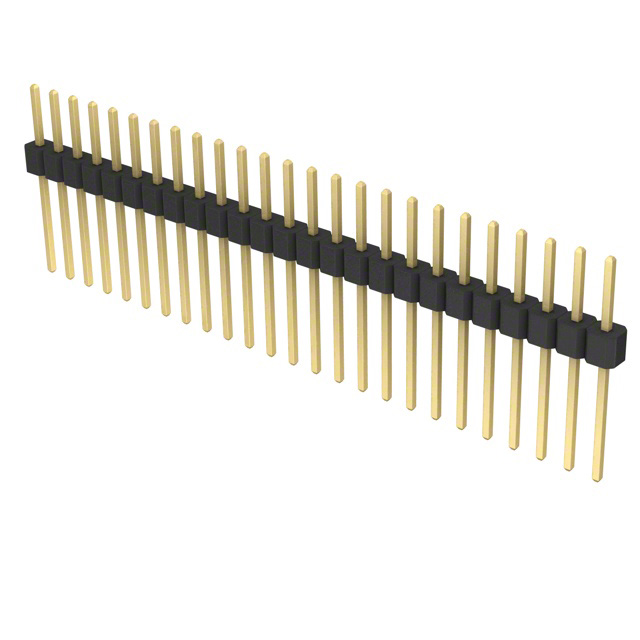

Sullins Connector Solutions PRPC025SADN-RC	Flash	Male Pin	Black			25	Gold	Square	0.748 in	19.01 mm	Gold	Push-Pull	Unshrouded	Board to Board Cable		10.67 mm	0.42 in	0.098 "	2.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Brass	Header Breakaway	Through Hole	-40 C	105 ░C	All	3 A	0.1 "	2.54 mm	Solder	Flash	0.23 in	5.84 mm	1
