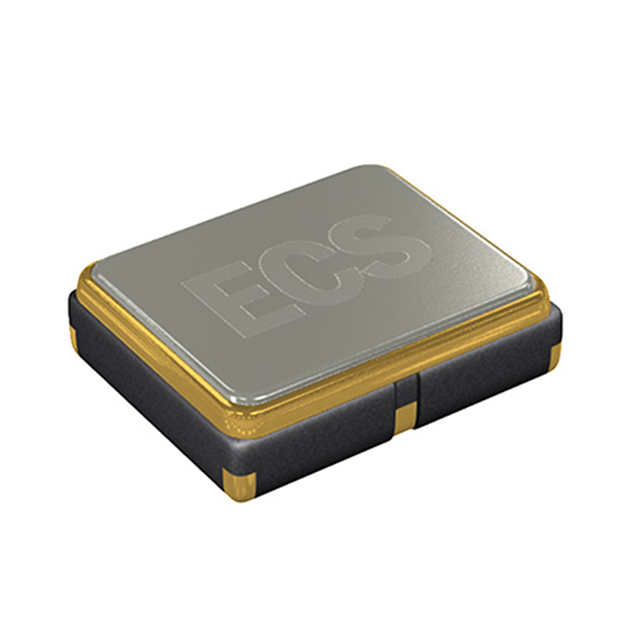

ECS-2520SMV Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 20.000 MHZ MULTIVOLT 1.62 3.63 V +/-10PPM -40 +85 C 4-SMD 2.5 X 2.0 MM ROHS

Part	Current - Supply (Disable) (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency	Current - Supply (Max) [Max]	Function	Mounting Type	Output	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Type	Base Resonator [custom]	Package / Case
ECS Inc. ECS-2520SMV-200-FN-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	10 ppm	85 °C	-40 C	1.62 V	3.63 V	20 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-192-GP-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	5 ppm	105 ░C	-40 C	1.62 V	3.63 V	19.2 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-250-FP-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	10 ppm	105 ░C	-40 C	1.62 V	3.63 V	25 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-260-GP-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	5 ppm	105 ░C	-40 C	1.62 V	3.63 V	26 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-110.5-GP-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	5 ppm	105 ░C	-40 C	1.62 V	3.63 V	11.0592 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-330-FN-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	10 ppm	85 °C	-40 C	1.62 V	3.63 V	33 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
ECS Inc. ECS-2520SMV-110.5-FN-TR	10 µA	0.035 in	0.9 mm	2.5 mm	0.079 in	0.098 in	2 mm	10 ppm	85 °C	-40 C	1.62 V	3.63 V	11.0592 MHz	10 mA	Enable/Disable	Surface Mount	HCMOS	2	2.5	4-SMD	XO (Standard)	Crystal	4-SMD No Lead
