PP-1A-D Series
Manufacturer: Switch Components
Beta
⌘K
HEAVY DUTY PUSH-PULL OFF-ON
| Part | Electrical Life | Mechanical Life | Actuator Type | Actuator Marking | Voltage Rating - DC | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Termination Style | Switch Function | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

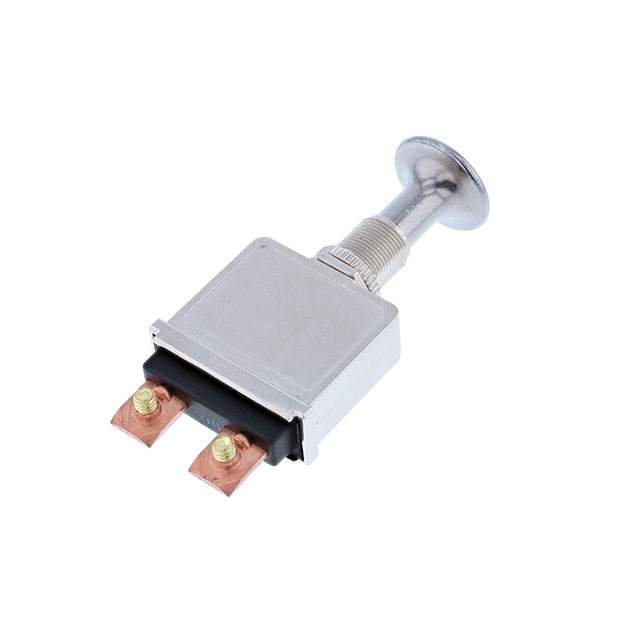

 Switch Components | 6000 Cycles | 10000 Steps | Button Round | No Marking | 12 V | 75 A | 12.2 mm Dia | Screw Terminal | On-Off | Standard | Panel Mount Rear | 85 °C | -25 °C | Silver | SPST |

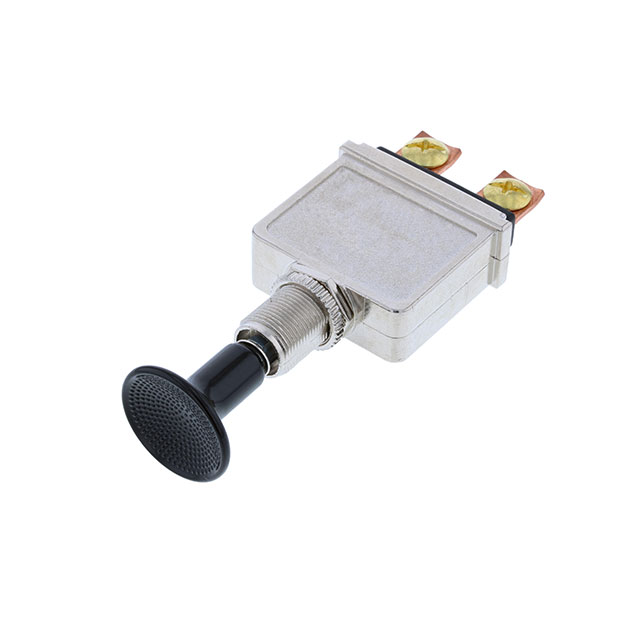

 Switch Components | 6000 Cycles | 10000 Steps | Button Round | No Marking | 12 V | 75 A | 12.2 mm Dia | Screw Terminal | On-Off | Standard | Panel Mount Rear | 85 °C | -25 °C | Black | SPST |
