412J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

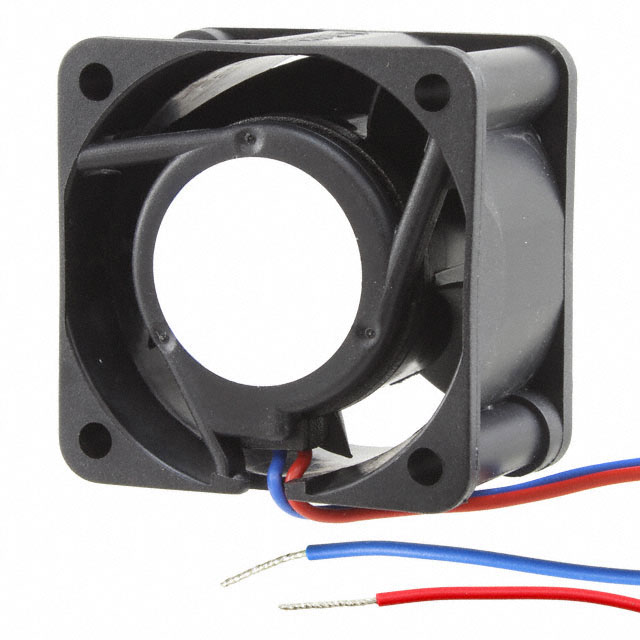

FAN AXIAL 40X25.4MM 12VDC WIRE
| Part | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Approval Agency | Noise | Width [y] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | RPM | Fan Type | Ingress Protection | Voltage - Rated | Air Flow | Air Flow | Termination | Bearing Type | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 13.5 VDC | 8 V | Polyamide (PA) Nylon Fiberglass Reinforced | 57500 Hrs | 270 mA | CE CSA UL VDE | 44 dB(A) | 25.4 mm | 40 mm | 40 mm | 3.2 W | 60 °C | 60 °C | -4 °F | -20 ░C | 13000 RPM | Tubeaxial | IP54 - Dust Protected Water Resistant | 12 VDC | 14.1 CFM | 0.395 m³/min | 2 Wire Leads | Ball | 0.111 lb | 50.35 g |
