SM08B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

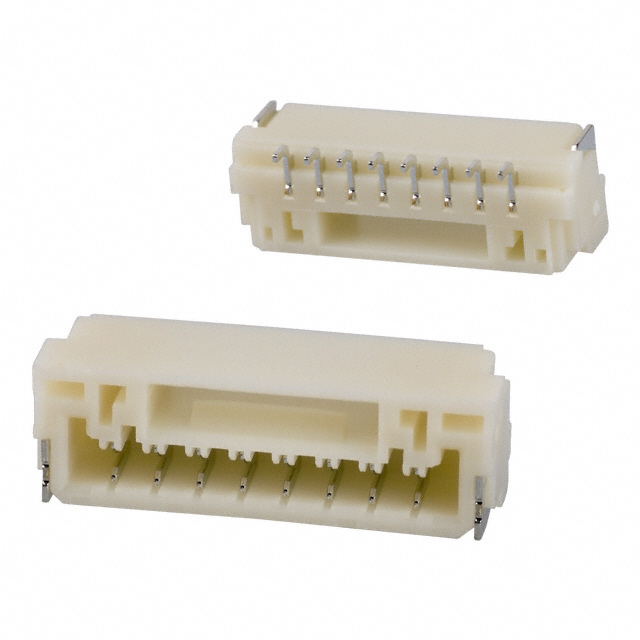

CONN HEADER SMD R/A 8POS 1.25MM
| Part | Insulation Height | Insulation Height | Insulation Color | Voltage Rating | Shrouding | Contact Type | Contact Material | Contact Shape | Fastening Type | Style | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Connector Type | Number of Positions Loaded | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Material | Material Flammability Rating | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 4.25 mm | 0.167 " | Natural | 50 V | Shrouded - 4 Wall | Outer Shroud Contact | Phosphor Bronze | Rectangular | Locking Ramp | Board to Cable/Wire | 1 | 85 °C | -25 °C | Solder | Header | All | Right Angle Surface Mount | 8 | 0.049 in | 1.25 mm | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Solder Retention | Tin |
