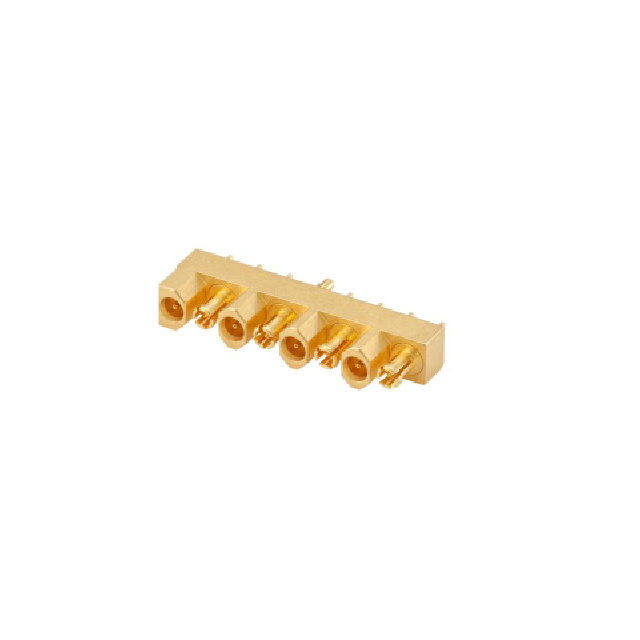

MF2C118 Series
Manufacturer: Rosenberger
Beta
⌘K
MINI COAX NON MAGNETIC MULTIPORT
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Body Finish | Housing Color | Center Contact Material | Contact Termination | Shield Termination | Connector Style | Mounting Type | Number of Ports | Frequency - Max [Max] | Fastening Type | Connector Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | 500 | Gold | 125 °C | -40 C | Brass | 500 V | Gold | Gold | Beryllium Copper | Solder | Solder | Miniature Coaxial | Surface Mount Through Hole | 8 | 20 GHz | Snap-On | Jack Female Socket (4) Plug Male Pin (4) | 50 Ohms |
