LMV831 Series

Single, 5.5-V, 3.3-MHz, 64-mA output current, low noise (12-nV/√Hz) operational amplifier

Catalog

Single, 5.5-V, 3.3-MHz, 64-mA output current, low noise (12-nV/√Hz) operational amplifier

Part	Output Type	Current - Supply (Main IC)	Amplifier Type	Utilized IC / Part	Supplied Contents	Slew Rate	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Output / Channel	Board Type	Number of Circuits	Voltage - Supply Span (Max) [Max]	Package / Case	Supplier Device Package	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Mounting Type	Current - Input Bias	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]

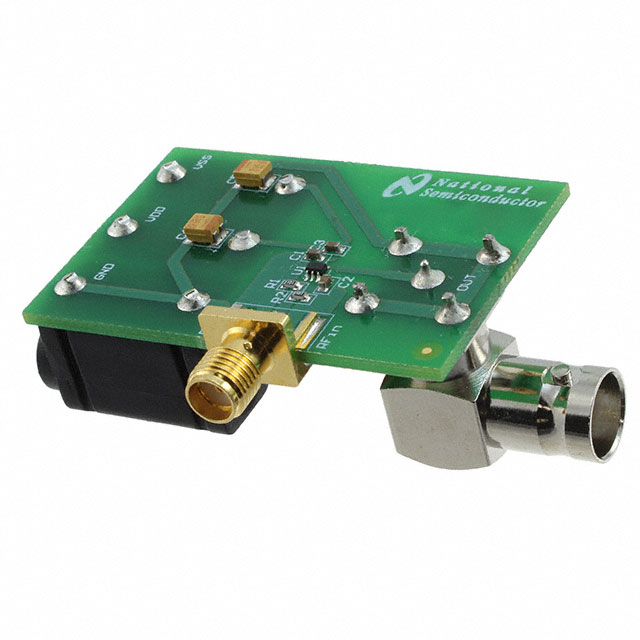

Texas Instruments LMV831MGEVAL	Single-Ended	250 µA	General Purpose	LMV831	Board(s)	2 V/µs	1 - Single	5.5 V	2.7 V	66 mA	Fully Populated
Texas Instruments LMV831MGX/NOPB			General Purpose			2 V/µs				66 mA		1	5.5 V	5-TSSOP SC-70-5 SOT-353	SC-70-5	250 çV	2.7 V	3.3 MHz	Surface Mount	0.1 pA	250 µA	125 °C	-40 °C

Catalog

Single, 5.5-V, 3.3-MHz, 64-mA output current, low noise (12-nV/√Hz) operational amplifier

Key Features

• Unless Otherwise Noted, Typical Values atTA= 25°C, V+= 3.3 VSupply Voltage 2.7 V to 5.5 VSupply Current (per Channel) 240 µAInput Offset Voltage 1-mV MaximumInput Bias Current 0.1 pAGBW 3.3 MHzEMIRR at 1.8 GHz 120 dBInput Noise Voltage at 1 kHz 12 nV/√HzSlew Rate 2 V/µsOutput Voltage Swing Rail-to-RailOutput Current Drive 30 mAOperating Ambient Temperature Range −40°C to 125°CUnless Otherwise Noted, Typical Values atTA= 25°C, V+= 3.3 VSupply Voltage 2.7 V to 5.5 VSupply Current (per Channel) 240 µAInput Offset Voltage 1-mV MaximumInput Bias Current 0.1 pAGBW 3.3 MHzEMIRR at 1.8 GHz 120 dBInput Noise Voltage at 1 kHz 12 nV/√HzSlew Rate 2 V/µsOutput Voltage Swing Rail-to-RailOutput Current Drive 30 mAOperating Ambient Temperature Range −40°C to 125°C

Description

TI’s LMV83x devices are CMOS input, low-power operation amplifier ICs, providing a low input bias current, a wide temperature range of −40°C to 125°C, and exceptional performance, making them robust general-purpose parts. Additionally, the LMV83x are EMI-hardened to minimize any interference, making them ideal for EMI-sensitive applications. The unity gain stable LMV83x feature 3.3-MHz of bandwidth while consuming only 0.24 mA of current per channel. These parts also maintain stability for capacitive loads as large as 200 pF. The LMV83x provide superior performance and economy in terms of power and space usage. This family of parts has a maximum input offset voltage of 1 mV, a rail-to-rail output stage and an input common-mode voltage range that includes ground. Over an operating range from 2.7 V to 5.5 V, the LMV83x provide a PSRR of 93 dB, and a CMRR of 91 dB. The LMV831 is offered in the space-saving 5-pin SC70 package, the LMV832 in the 8-pin VSSOP and the LMV834 is offered in the 14--in TSSOP package. TI’s LMV83x devices are CMOS input, low-power operation amplifier ICs, providing a low input bias current, a wide temperature range of −40°C to 125°C, and exceptional performance, making them robust general-purpose parts. Additionally, the LMV83x are EMI-hardened to minimize any interference, making them ideal for EMI-sensitive applications. The unity gain stable LMV83x feature 3.3-MHz of bandwidth while consuming only 0.24 mA of current per channel. These parts also maintain stability for capacitive loads as large as 200 pF. The LMV83x provide superior performance and economy in terms of power and space usage. This family of parts has a maximum input offset voltage of 1 mV, a rail-to-rail output stage and an input common-mode voltage range that includes ground. Over an operating range from 2.7 V to 5.5 V, the LMV83x provide a PSRR of 93 dB, and a CMRR of 91 dB. The LMV831 is offered in the space-saving 5-pin SC70 package, the LMV832 in the 8-pin VSSOP and the LMV834 is offered in the 14--in TSSOP package.
