IL-AG7-5 Series
Manufacturer: JAE Electronics
Beta
⌘K

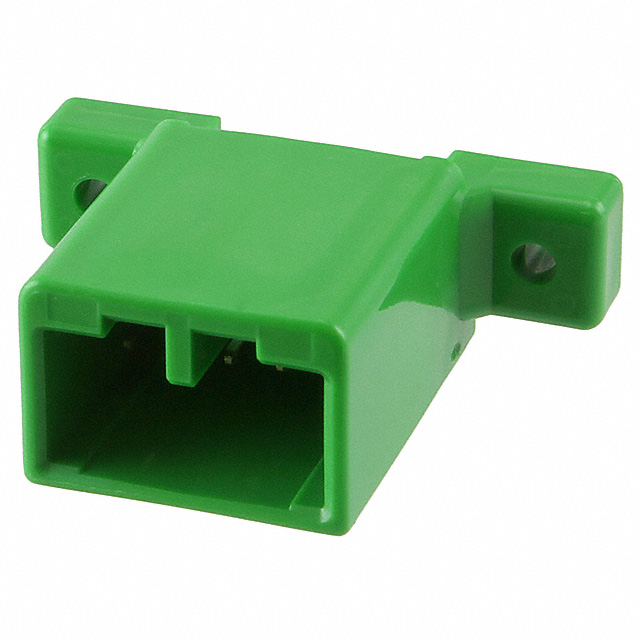

CONN HEADER VERT 5POS 2.5MM
| Part | Applications | Contact Type | Shrouding | Fastening Type | Termination | Mounting Type | Number of Rows | Features | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Shape | Insulation Color | Style | Current Rating (Amps) | Contact Finish - Post | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Material | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Male Pin | Shrouded - 4 Wall | Push-Pull | Solder | Through Hole | 1 | Mounting Flange | 0.138 in | 3.5 mm | 0.331 in | 8.4 mm | 2.5 mm | 0.098 in | All | 23.2 mm | 0.913 in | Square | Green | Board to Cable/Wire | 3 A | Tin | 5 | 85 °C | -40 C | Header | Polybutylene Terephthalate (PBT) | Brass |
