2564180 Series
Manufacturer: NorComp Inc.
Beta
⌘K

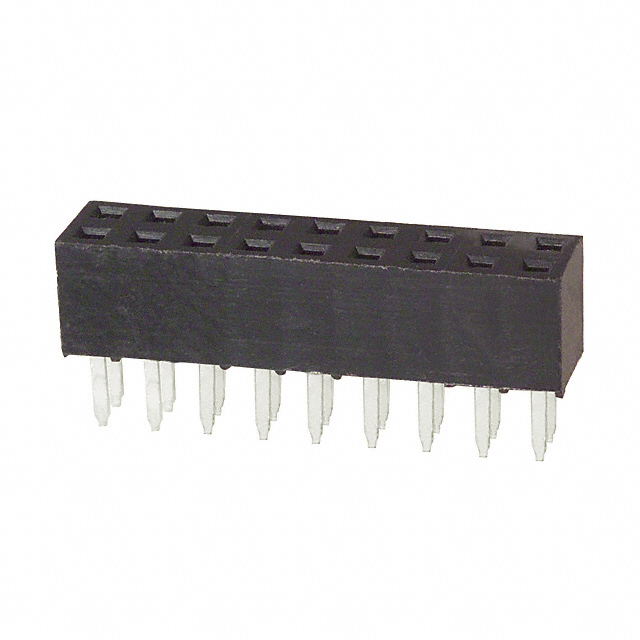

25641801RP2 ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Contact Finish - Mating | Material Flammability Rating | Mounting Type | Connector Type | Insulation Color | Contact Finish - Post | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Fastening Type | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 2.54 µm | 100 µin | Phosphor Bronze | Square | -40 C | 105 ░C | Female Socket | 2 mm | 0.079 in | 2 | Gold | UL94 V-0 | Through Hole | Receptacle | Black | Tin | All | 0.118 in | 3 mm | Push-Pull | 0.177 in | 4.5 mm | 18 | 0.079 " | 2 mm | Flash | Solder |
