PPL36U Series

Catalog

AC/DC DESKTOP ADAPTER 24V 36W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Input Connector	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Voltage - Output	Standard Number	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Output Connector	No Load Power Consumption	Polarization	Region Utilized	Input Type	Form	Approval Agency	Current - Output (Max)	Cord Length

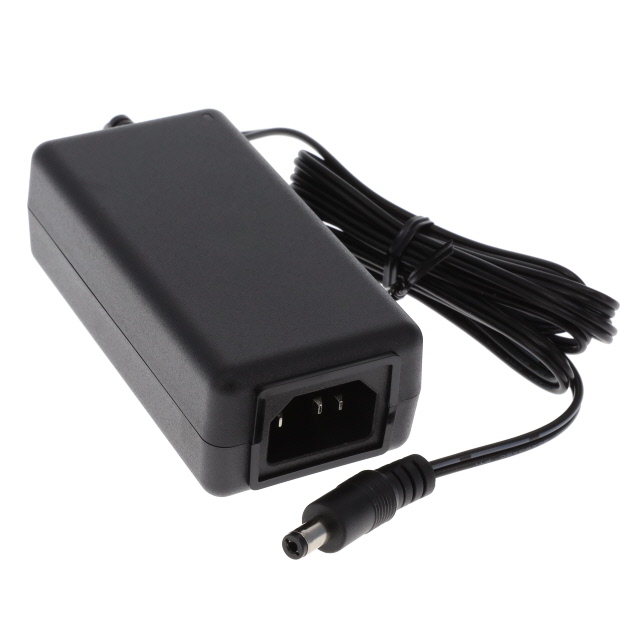

Phihong USA PPL36U-240	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	CoC Tier 2 Level VI	IEC 320-C14	36 W	264 VAC	90 VAC	1.5 A	40 °C	24 V	62368-1	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC
Phihong USA PPL36U-480	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	CoC Tier 2 Level VI	IEC 320-C14	36 W	264 VAC	90 VAC	750 mA	40 °C	48 V	62368-1	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC

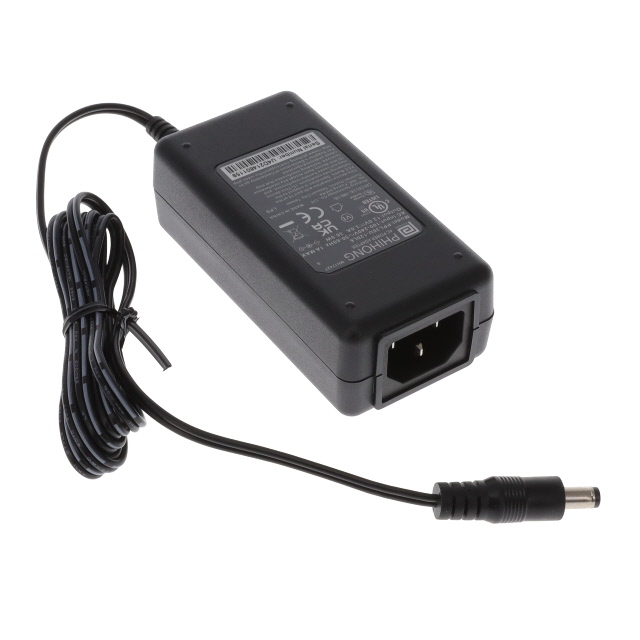

Phihong USA PPL36U-120L6	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	Level VI	IEC 320-C14	36 W	264 VAC	90 VAC	3 A	40 °C	12 V	62368-1	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	100 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC

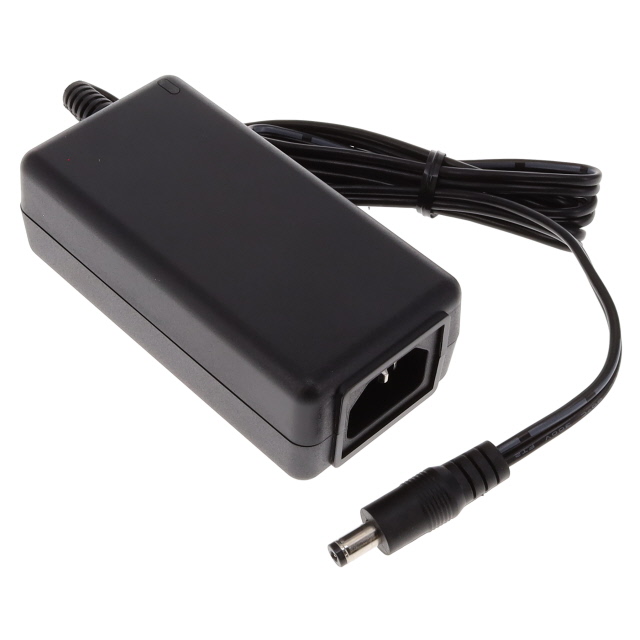

Phihong USA PPL36U-050	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	CoC Tier 2 Level VI	IEC 320-C14	25 W	264 VAC	90 VAC		40 °C	5 V	62368-1	39.4 in		10 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC	5 A	1 m
Phihong USA PPL36U-180	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	CoC Tier 2 Level VI	IEC 320-C14	36 W	264 VAC	90 VAC	2 A	40 °C	18 V	62368-1	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC
Phihong USA PPL36U-090	1.97 in	50 mm	1.3 in	100 mm	3.94 in	33 mm	ITE (Commercial)	CoC Tier 2 Level VI	IEC 320-C14	30 Watts	264 VAC	90 VAC	3.34 A	40 °C	9 V	62368-1	1.5 m	59 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	Positive Center	International	Cord (Sold Separately)	Desktop (Class I)	cULus IEC
