2238207 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

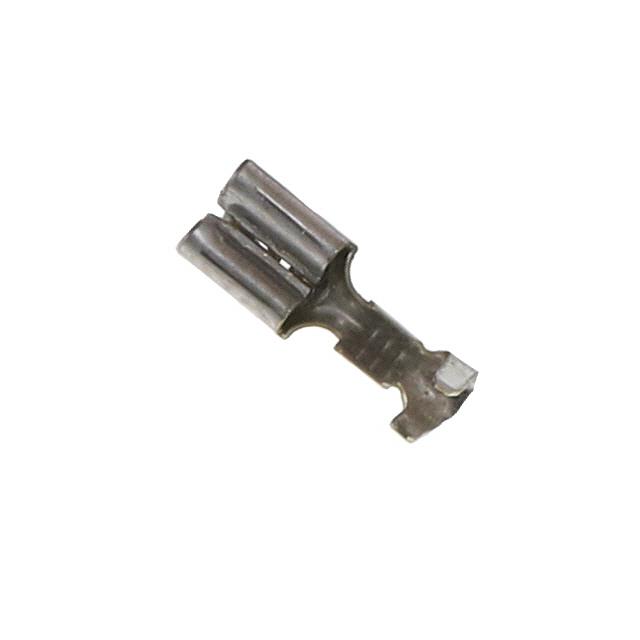

FAST 187X.02 STD REC STR F-CR 20
| Part | Contact Finish | Tab Thickness [y] | Tab Thickness [x] | Tab Thickness [y] | Tab Thickness [x] | Contact Material | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Width | Tab Width | Insulation | Mounting Type | Gender | Termination | Tab Length | Tab Length | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 0.021 " | 0.48 mm | 0.53 mm | 0.019 " | Brass | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | 4.75 mm | 0.187 in | Non-Insulated | Free Hanging (In-Line) | Female | Crimp | 6.35 mm | 0.25 in | Standard | 16 AWG | 20 AWG |
