305-022 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 22POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Termination	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions/Bay/Row	Contact Material	Pitch	Pitch	Card Type	Contact Finish	Gender	Contact Finish Thickness	Contact Finish Thickness	Features

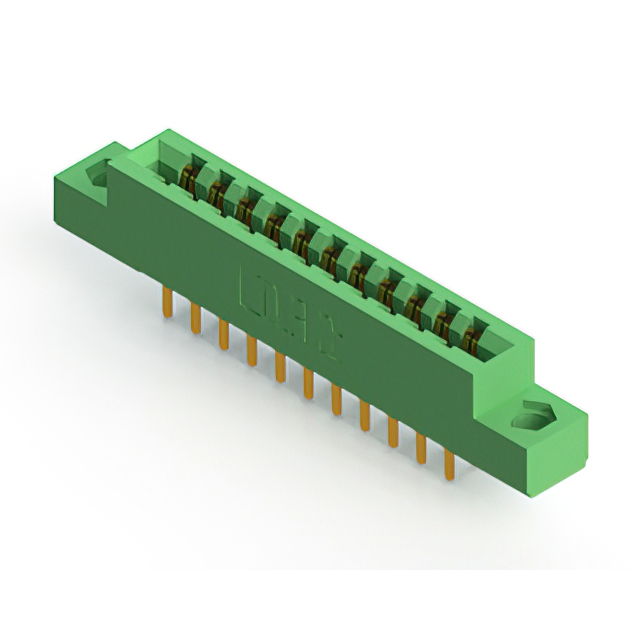

EDAC Inc. 305-022-520-204	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin

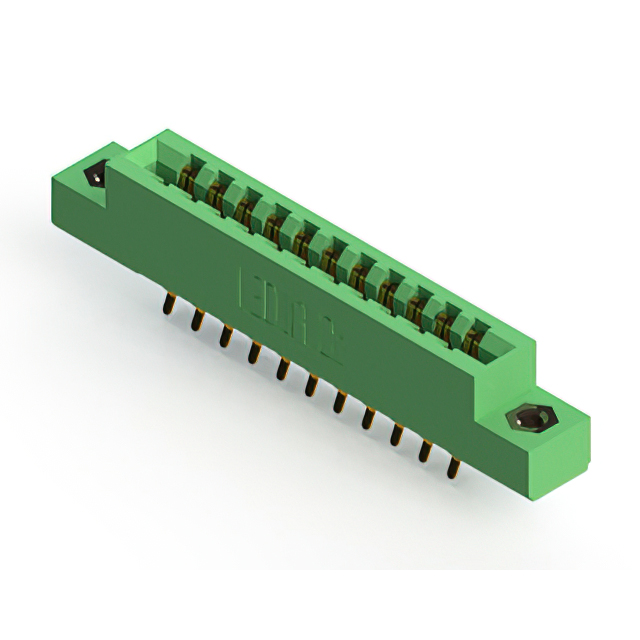

EDAC Inc. 305-022-556-208	2	Polyester Thermoplastic	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin	Card Extender

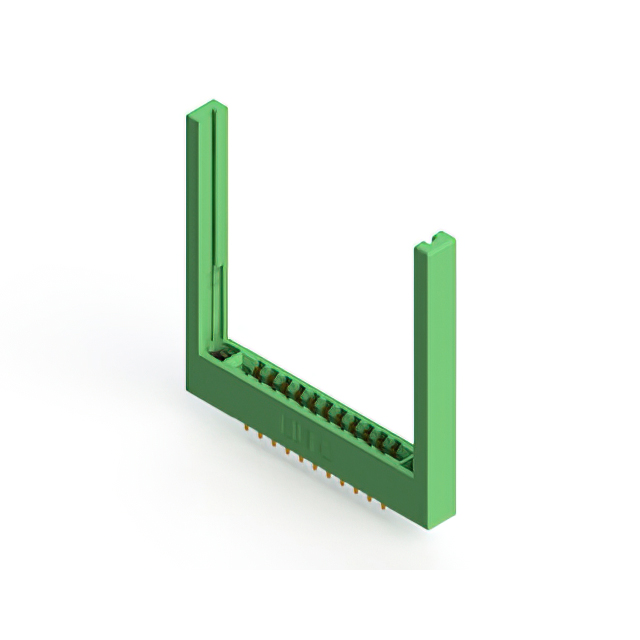

EDAC Inc. 305-022-521-568	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin

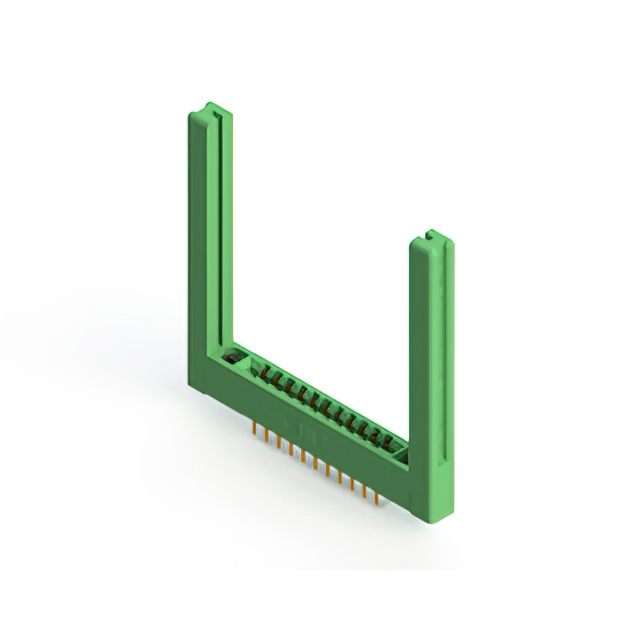

EDAC Inc. 305-022-520-258	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin

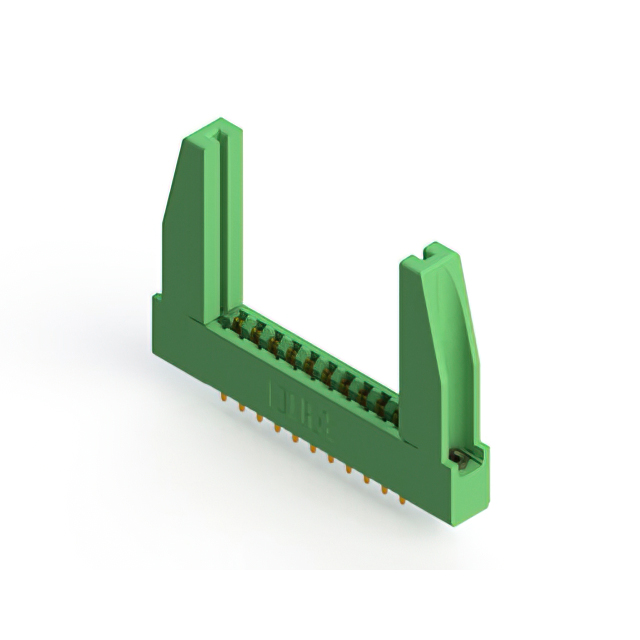

EDAC Inc. 305-022-521-278	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin

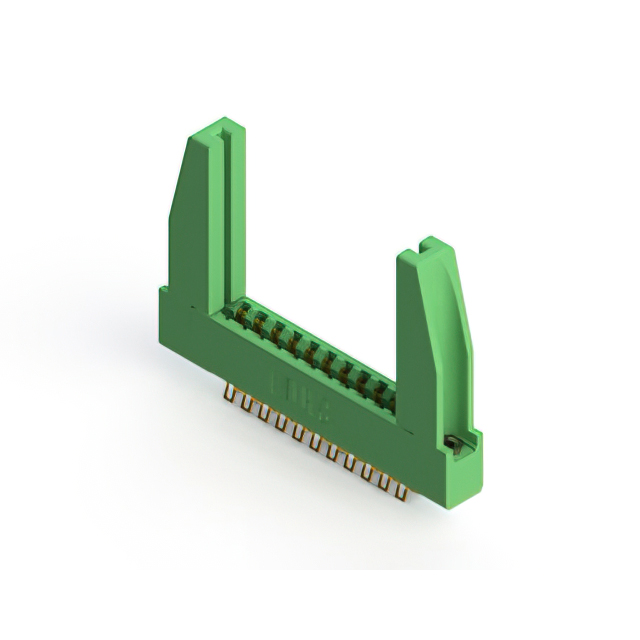

EDAC Inc. 305-022-555-578	2	Polyester Thermoplastic	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin	Card Extender Card Guides

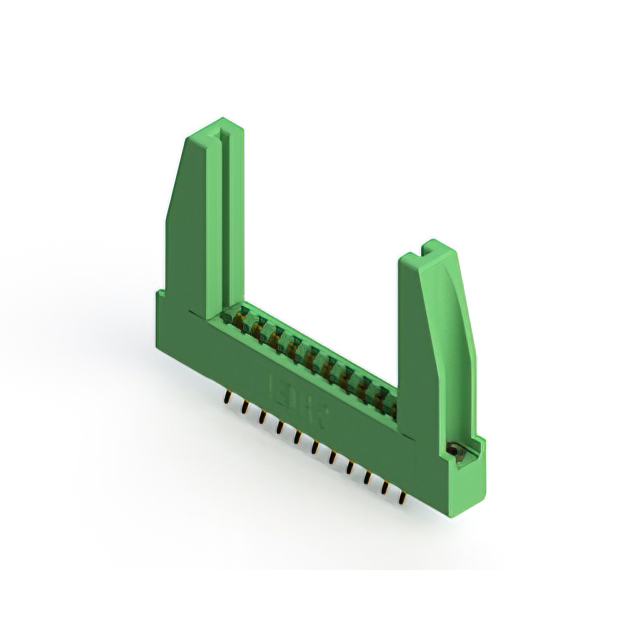

EDAC Inc. 305-022-556-578	2	Polyester Thermoplastic	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin	Card Extender Card Guides

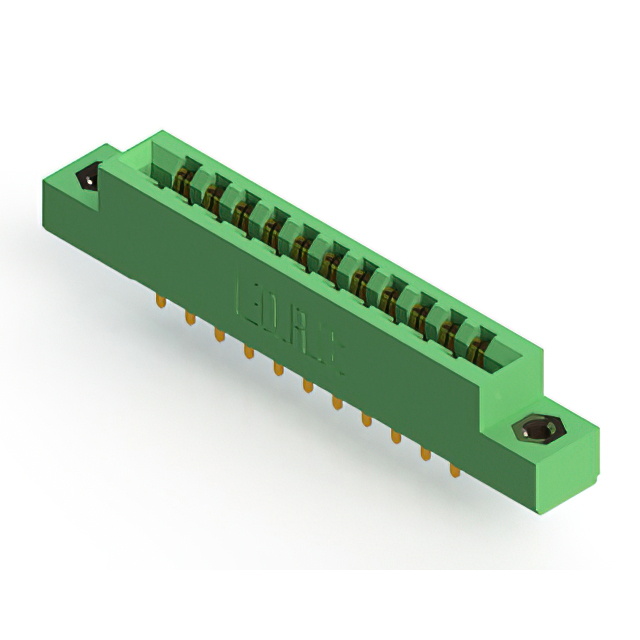

EDAC Inc. 305-022-521-508	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin

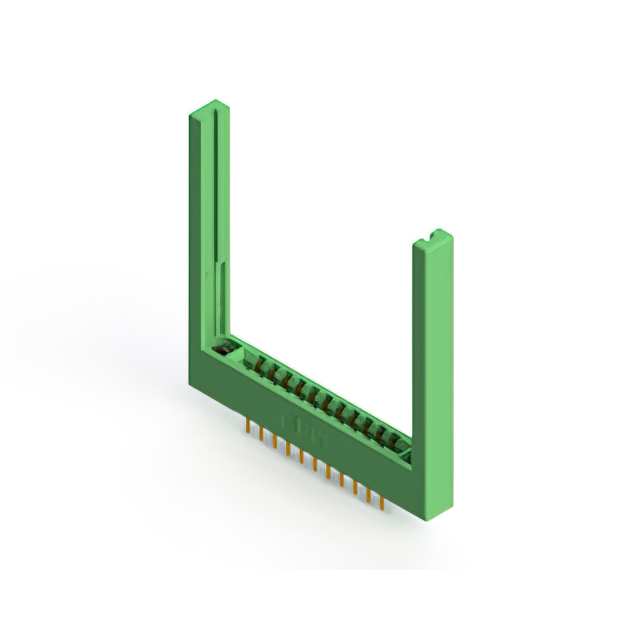

EDAC Inc. 305-022-520-268	2	Polyester Thermoplastic	Panel Mount Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin
EDAC Inc. 305-022-500-558	2	Polyester Thermoplastic	Panel Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Solder Eyelet(s)	Dual	4-40 Flush Mount Threaded Insert Top Opening			Green	-40 C	105 ░C	Semi Bellows	11	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	Female	0.25 Ám	10 Áin
