GC1917 Series
Manufacturer: Comus International
Beta
⌘K

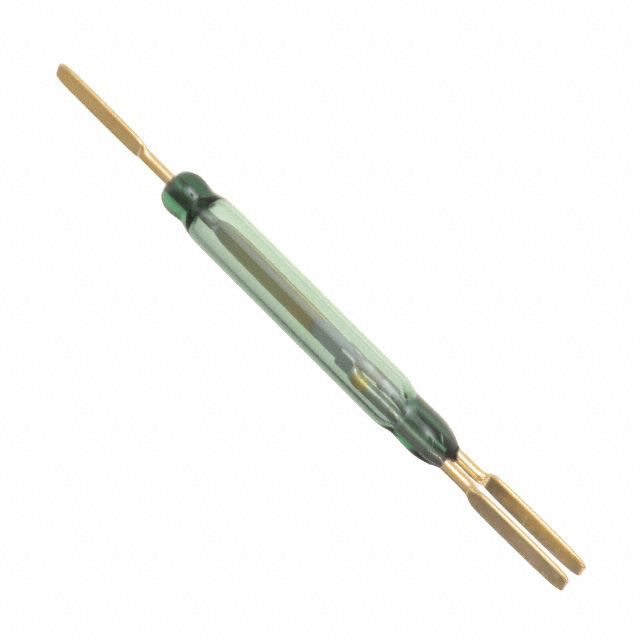

SWITCH REED SPDT 1A 400V
| Part | Operate Range [Max] | Operate Range [Min] | Current - Carry | Voltage - Switching AC | Power - Rated | Mounting Type | Voltage - Switching DC | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Length - Overall [x] | Length - Overall [x] | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Release Range | Termination Style | Type | Current - Switching | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 70 AT | 65 | 2 A | 400 V | 60 W | Surface Mount | 400 V | 1 pF | 125 °C | -40 C | SPDT | 2.75 in | 69.85 mm | 5.59 mm | 36.07 mm | 0.22 " | 1.42 " | 20AT | Axial Flat | Glass Body Reed | 1 A | 2 ms | 1.5 ms |
