0281-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth [z]	Socket Depth	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall	Length - Overall	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0281-3-17-15-06-14-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0281-3-17-80-06-14-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0281-3-17-01-06-27-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Gold	Beryllium Copper	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0281-3-17-01-06-14-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin

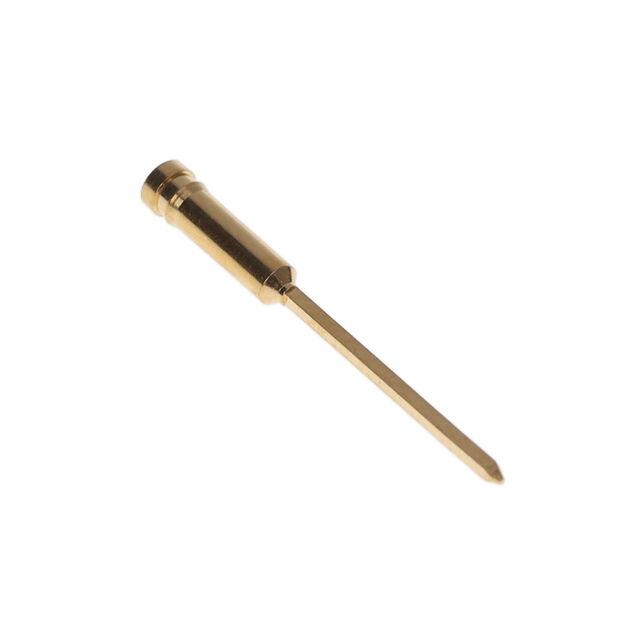

Mill-Max Manufacturing Corp. 0281-3-17-15-06-27-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Gold	Beryllium Copper	0.76 Ám	30 Áin

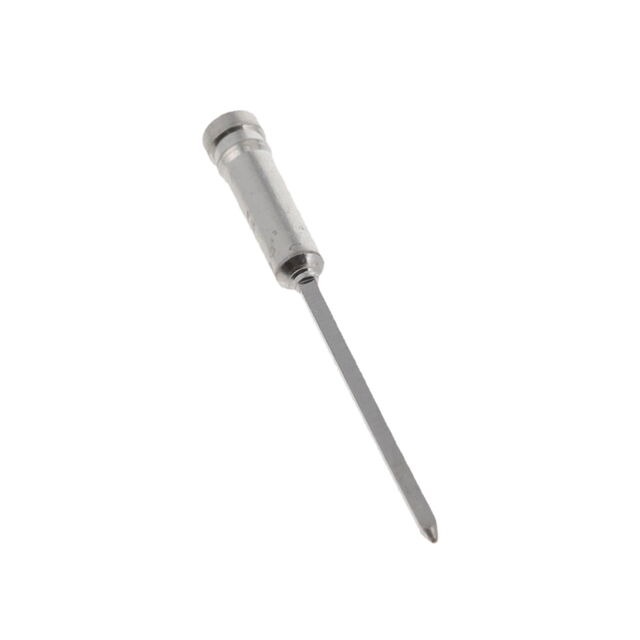

Mill-Max Manufacturing Corp. 0281-3-17-01-06-01-02-0	-55 C	125 °C	0.051 in	1.3 mm	0.27 "	6.86 mm	Wire Wrap	2.03 mm	0.08 in	2.16 mm	0.085 "	Press-Fit	0.025 in	0.64 mm	0.812 "	20.62 mm	Tin-Lead	Beryllium Copper	5.08 Ám	200 Áin
