MPXV1D0840 Series
Manufacturer: KEMET
Beta
⌘K

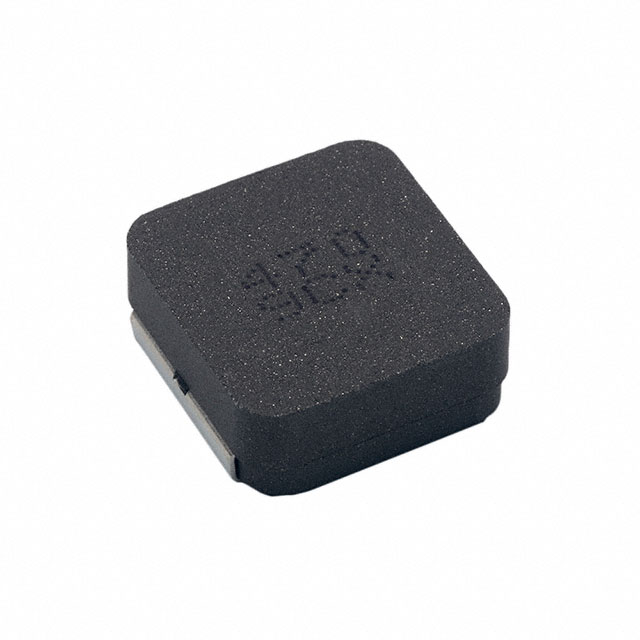

POWER INDUCTOR (SMD), AEC-Q200, 680 NH, 22.4 A, SHIELDED, 30 A, MPXV SERIES
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Shielding | Current - Saturation (Isat) | Frequency - Self Resonant | Ratings | Package / Case | Material - Core | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Current Rating (Amps) | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.341 in | 8.65 mm | 8 mm | 0.315 in | Shielded | 30 A | 46 MHz | AEC-Q200 | Nonstandard | Metal Composite | 20 % | 4 mm | 0.157 in | 22.4 A | 0.68 µH | 155 C | -55 C | 3.6 mOhm | 100 kHz | Surface Mount |
 KEMET | 0.341 in | 8.65 mm | 8 mm | 0.315 in | Shielded | 45 A | 77 MHz | AEC-Q200 | Nonstandard | Metal Composite | 20 % | 4 mm | 0.157 in | 27.7 A | 330 nH | 155 C | -55 C | 2.4 mOhm | 100 kHz | Surface Mount |
KEMET | 0.341 in | 8.65 mm | 8 mm | 0.315 in | Shielded | 53 A | 100 MHz | AEC-Q200 | Nonstandard | Metal Composite | 20 % | 4 mm | 0.157 in | 35.4 A | 220 nH | 155 C | -55 C | 1.5 mOhm | 100 kHz | Surface Mount |
KEMET | 0.341 in | 8.65 mm | 8 mm | 0.315 in | Shielded | 6.5 A | 9 MHz | AEC-Q200 | Nonstandard | Metal Composite | 20 % | 4 mm | 0.157 in | 5.2 A | 15 µH | 155 C | -55 C | 65 mOhm | 100 kHz | Surface Mount |
