RSF84 Series
Manufacturer: Sensata Technologies
Beta
⌘K

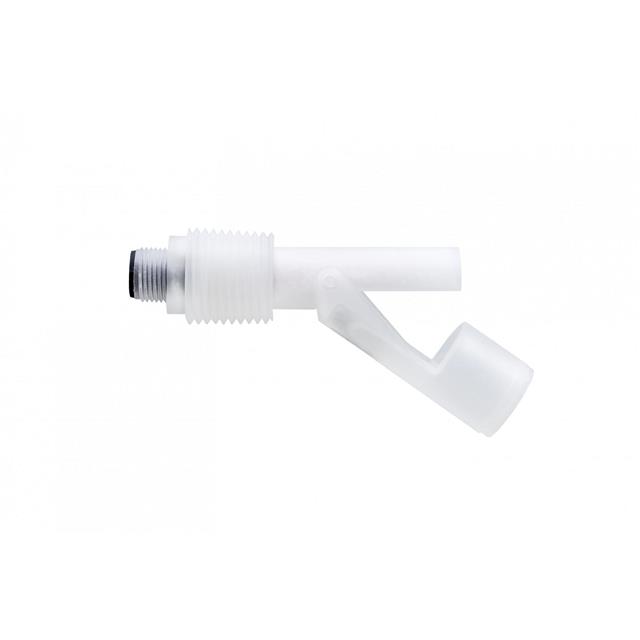

SENSOR LEVEL SWITCH SINGLE FLOAT
| Part | Current | Output Configuration | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Actuation Level | Switch Actuation Level | Minimum Liquid Specific Gravity [Min] | Voltage Rating | Material - Housing & Prism |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | 1 A | SPST-NC/NO | Liquid | Male 1/2" (12.7mm) NPT | 100 °C | -20 C | 20 mm | 0.787 in | 0.85 | 300 VDC 300 VAC | Polypropylene (PP) |
Sensata Technologies | 600 mA | SPST-NC/NO | Liquid | Male 1/2" (12.7mm) NPT | 100 °C | -20 C | 20 mm | 0.787 in | 0.85 | 120 VDC 240 VAC | Polypropylene (PP) |
