6SVPT Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

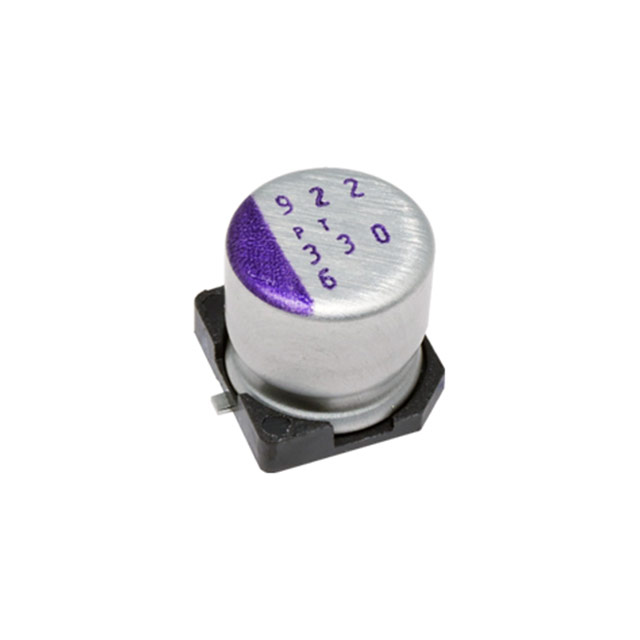

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 330 ΜF, 6.3 V, RADIAL CAN - SMD, 0.015 OHM
| Part | Voltage - Rated | Ripple Current @ High Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Package / Case | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Capacitance | Tolerance | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 6.3 VDC | 3.39 A | 6.5 mm | 0.256 in | Surface Mount | Radial Can - SMD | 20000 Hrs | 15 mOhm | 0.248 " | 6.3 mm | 169.5 mA | 330 µF | 20 % | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | General Purpose | -55 C | 105 ░C | Polymer |
