MPM3632 Series

Catalog

DC/DC SWITCHING REGULATOR, ADJUSTABLE, BUCK (STEP DOWN), 1 OUTPUT, 800 MV TO 5.5 V, 3 A, 3 MHZ, 20 P… MORE

Part	Package / Case	Voltage - Output (Min/Fixed)	Output Type	Output Configuration	Topology	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Number of Outputs	Function	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Frequency - Switching	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Voltage - Input	Contents	Voltage - Output	Regulator Topology	Main Purpose
Monolithic Power Systems Inc. MPM3632CGQV-P	20-PowerLFQFN Module	0.8 V	Adjustable	Positive	Buck	3 A	-40 C	125 °C	4 V	20-QFN (3x5)	1	Step-Down	Surface Mount	18 V	5.5 V	3 MHz

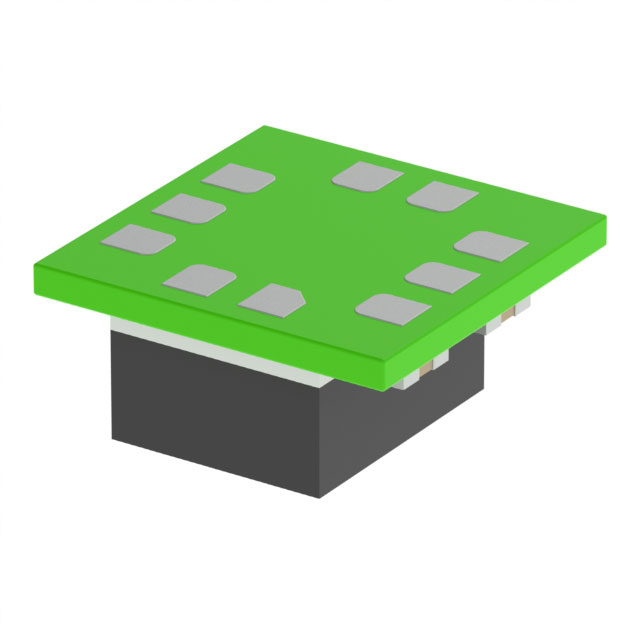

Monolithic Power Systems Inc. MPM3632SGPQ-Z	10-LFLGA Module	0.8 V	Adjustable	Positive	Buck	3 A	-40 C	125 °C	4 V	10-ECLGA (3x3)	1	Step-Down	Surface Mount	18 V	5.2 V	2.2 MHz
Monolithic Power Systems Inc. MPM3632SGPQ-P	10-LFLGA Module	0.8 V	Adjustable	Positive	Buck	3 A	-40 C	125 °C	4 V	10-ECLGA (3x3)	1	Step-Down	Surface Mount	18 V	5.2 V	2.2 MHz
Monolithic Power Systems Inc. MPM3632CGQV-Z	20-PowerLFQFN Module	0.8 V	Adjustable	Positive	Buck	3 A	-40 C	125 °C	4 V	20-QFN (3x5)	1	Step-Down	Surface Mount	18 V	5.5 V	3 MHz

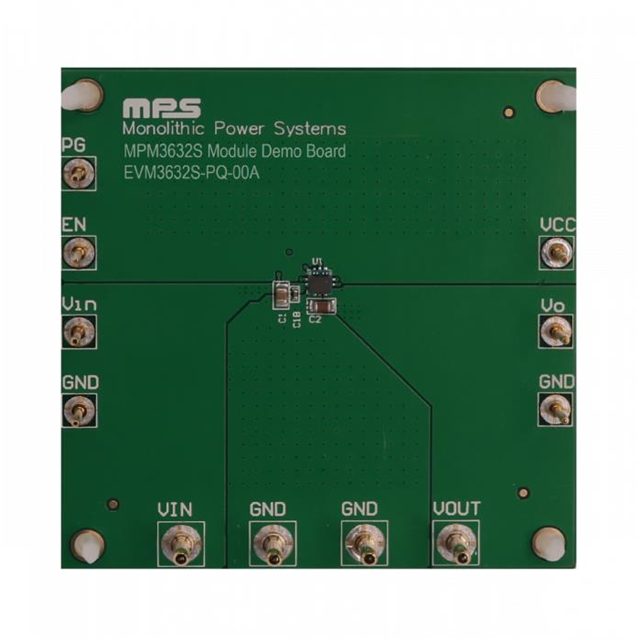

Monolithic Power Systems Inc. EVM3632S-PQ-01A						3 A										2.2 MHz	Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	MPM3632S	12 VDC	Board(s)	3.3 V	Buck	DC/DC Step Down
