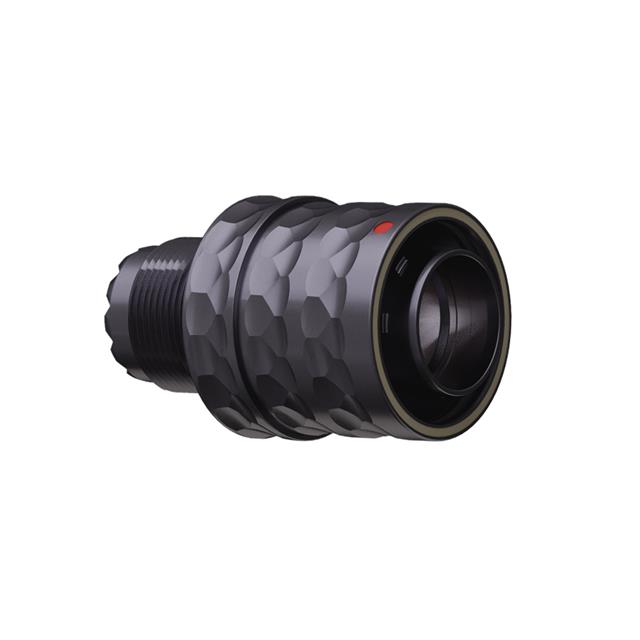

STANDARD CIRCULAR CONNECTOR ODU AMC SERIES T BREAK-AWAY PLUG FOR BACKSHELL, SHELL SIZE 09, IP6K9K, 10 CONTACTS, A (LIGHT BROWN) KEY
| Part | Termination | Contact Material | Current Rating (Amps) | Shielding | Shell Material | Insert Material | Fastening Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Contact Finish - Mating | Features | Connector Type | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Material Flammability Rating | Mounting Type | Voltage Rating | Orientation | Shell Size - Insert | Ingress Protection | Contact Type | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Size | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Finish | Type | Material | Accessory Type | For Use With/Related Products | Shell Size - Insert [custom] | Mounting Feature | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crimp | Copper Alloy | 5 A | Shielded | Aluminum | Polyetheretherketone (PEEK) | Push-Pull | Metal | -65 ░C | 175 °C | Tin Nickel | Gold | Backshell Coupling Nut | Plug Male Pins | Silver | 50 µin | 1.27 µm | 10 | UL94 V-0 | Free Hanging (In-Line) | 50 V | A | 9 | IP68 IP69K | |||||||||||||||||
Pin | Crimp | 50 µin | 1.27 µm | 22D | 22 AWG | 26 AWG | Gold | Signal | ||||||||||||||||||||||||||||||||
Lanyard | Black | 9 | Aluminum | Cap (Cover) Protective | ODU AMC® T Series Receptacle | |||||||||||||||||||||||||||||||||||
Crimp | Copper Alloy | 5 A | Shielded | Aluminum | Polyetheretherketone (PEEK) | Threaded | Metal | -65 ░C | 175 °C | Tin Nickel | Gold | Backshell Coupling Nut | Plug Male Pins | Silver | 50 µin | 1.27 µm | 10 | UL94 V-0 | Free Hanging (In-Line) | 50 V | A | 9 | IP68 IP69K | |||||||||||||||||
Copper Alloy | 13 A | Shielded | Aluminum | Polyetheretherketone (PEEK) | Push-Pull Threaded | Metal | -65 ░C | 175 °C | Tin Nickel | Gold | Receptacle Female Sockets | Silver | 50 µin | 1.27 µm | 5 | UL94 V-0 | Panel Mount | 50 V | A | IP68 IP69K | 12 | Bulkhead - Front Side Nut | ||||||||||||||||||
Crimp | Copper Alloy | 5 A | Shielded | Aluminum | Polyetheretherketone (PEEK) | Push-Pull | Metal | -65 ░C | 175 °C | Tin Nickel | Gold | Coupling Nut | Plug Male Pins | Silver | 50 µin | 1.27 µm | 10 | UL94 V-0 | Free Hanging (In-Line) | 50 V | A | 9 | IP68 IP69K | 0.399 in | 7.6 mm |
