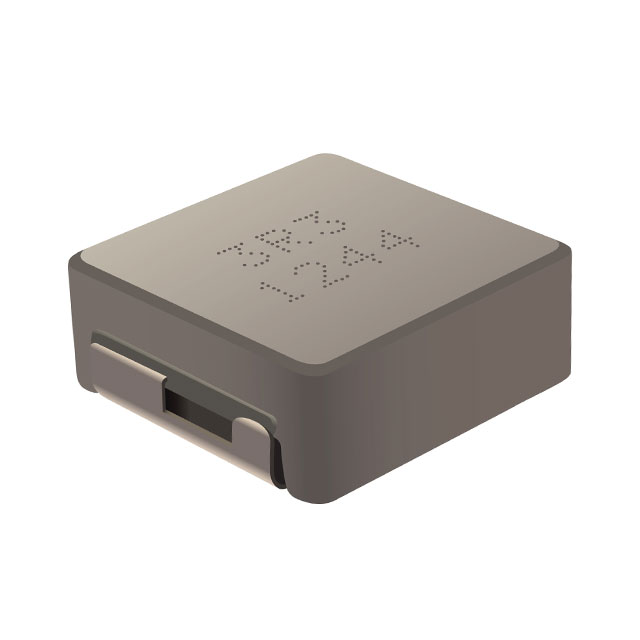

SRP1770TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SHIELDED WIREWOUND 56UH 20% 100KHZ 20Q-FACTOR CARBONYL POWDER 7.8A 0.062OHM DCR AUTOMOTIVE AEC-Q200 T/R
| Part | Package / Case | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shielding | Tolerance | Current - Saturation (Isat) | Type | Ratings | Current Rating (Amps) | Inductance | DC Resistance (DCR) | Frequency - Self Resonant | Q @ Freq | Material - Core | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Nonstandard | 100 kHz | 16.9 mm | 0.665 " | 0.665 in | 16.9 mm | 0.276 in | 7 mm | -40 C | 150 °C | Surface Mount | Shielded | 20 % | 9 A | Drum Core Wirewound | AEC-Q200 | 7.8 A | 56 µH | 62 mOhm | 3 MHz | 20 100 kHz | Carbonyl Powder | |
Bourns Inc. | Nonstandard | 100 kHz | 16.9 mm | 0.665 " | 0.665 in | 16.9 mm | 0.276 in | 7 mm | -40 C | 150 °C | Surface Mount | Shielded | 20 % | 24 A | Drum Core Wirewound | AEC-Q200 | 16.5 A | 10 µH | 8 MHz | 20 100 kHz | Carbonyl Powder | 13 mOhm | |
Bourns Inc. | Nonstandard | 100 kHz | 16.9 mm | 0.665 " | 0.665 in | 16.9 mm | 0.276 in | 7 mm | -40 C | 150 °C | Surface Mount | Shielded | 20 % | 8 A | Drum Core Wirewound | AEC-Q200 | 7 A | 68 µH | 2 MHz | 20 100 kHz | Carbonyl Powder | 80 mOhm | |
 Bourns Inc. | Nonstandard | 100 kHz | 16.9 mm | 0.665 " | 0.665 in | 16.9 mm | 0.276 in | 7 mm | -40 C | 150 °C | Surface Mount | Shielded | 20 % | 45 A | Drum Core Wirewound | AEC-Q200 | 28 A | 3.3 µH | 17 MHz | 20 100 kHz | Carbonyl Powder | 3.9 mOhm | |
Bourns Inc. | Nonstandard | 100 kHz | 16.9 mm | 0.665 " | 0.665 in | 16.9 mm | 0.276 in | 7 mm | -40 C | 150 °C | Surface Mount | Shielded | 20 % | 23 A | Drum Core Wirewound | AEC-Q200 | 12.5 Amps | 15 µH | 7 MHz | 20 100 kHz | Carbonyl Powder | 20.5 mOhm |
