E160 Series

Catalog

PLUGBOARD HARD METRIC NPTH

Part	Proto Board Type	Hole Diameter [diameter]	Hole Diameter [diameter]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Pitch	Pitch	Board Thickness	Board Thickness	Board Thickness	Circuit Pattern	Plating	Material

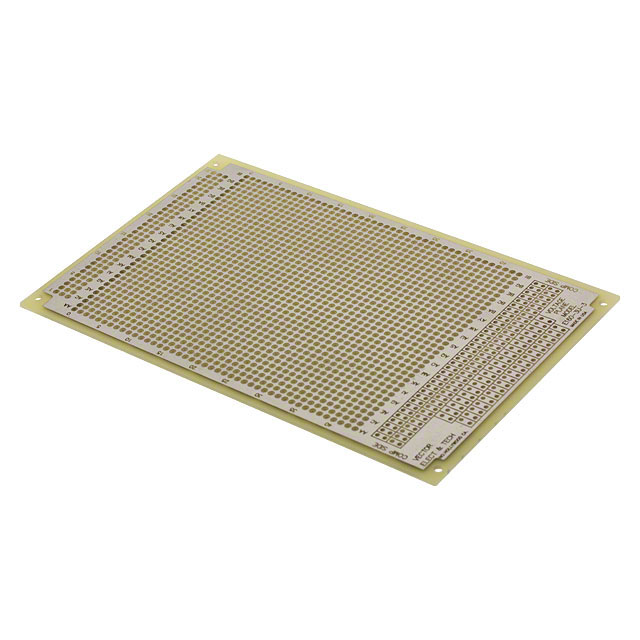

Vector Electronics E160-3U-3	Hard Metric Plugboard	0.055 in	1.4 mm	3.94 in	160 mm	6.3 in	100.1 mm	0.1 "	2.54 mm	1.57 mm	0.062 "	0.0625 in	Pad Per Hole (Round) Ground Plane	Non-Plated Through Hole (NPTH)
Vector Electronics E160-3U-2	Hard Metric Plugboard	0.042 "	1.07 mm	3.94 in	160 mm	6.3 in	100.1 mm	0.1 "	2.54 mm	1.57 mm	0.062 "	0.0625 in	Pad Per Hole (Round) Ground Plane	Non-Plated Through Hole (NPTH)

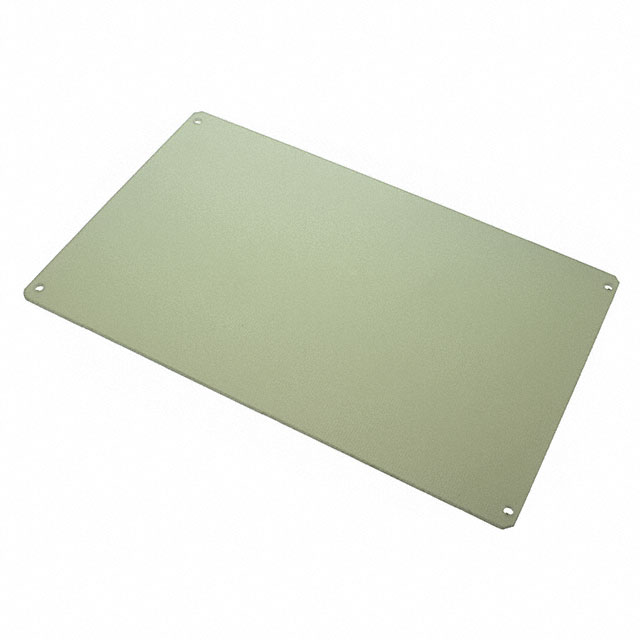

Vector Electronics E160-3U-00	Unclad (No Copper)			3.94 in	160 mm	6.3 in	100.1 mm			1.6 mm	0.063 in				FR4 Epoxy Glass

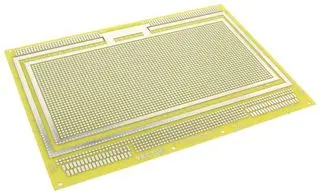

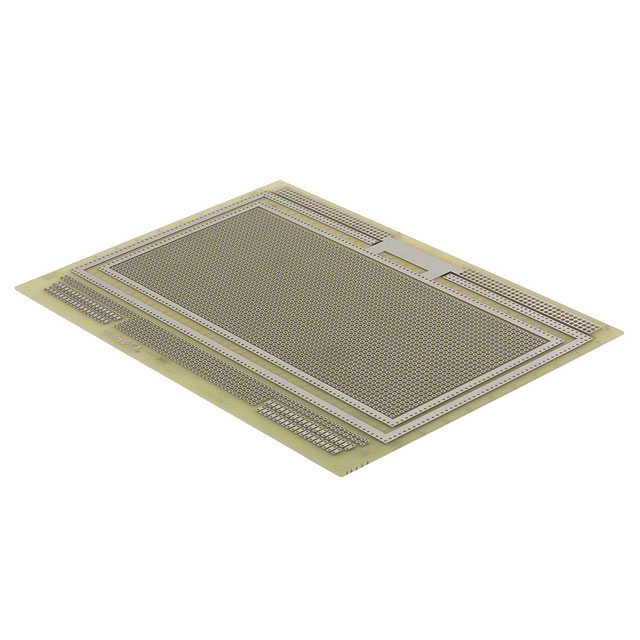

Vector Electronics E160-6U-1	Hard Metric Plugboard	0.042 "	1.07 mm	6.3 "	233.4 mm	9.19 in	160 mm	0.1 "	2.54 mm	1.57 mm	0.062 "	0.0625 in	Pad Per Hole (Round) Ground Plane	Plated Through Hole (PTH)

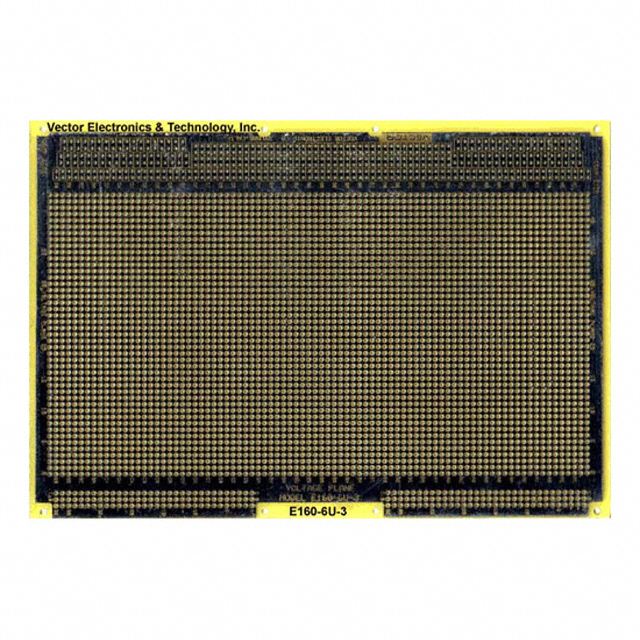

Vector Electronics E160-6U-3	Hard Metric Plugboard	0.055 in	1.4 mm	6.3 "	233.4 mm	9.19 in	160 mm	0.1 "	2.54 mm	1.57 mm	0.062 "	0.0625 in	Pad Per Hole (Round) Ground Plane	Non-Plated Through Hole (NPTH)

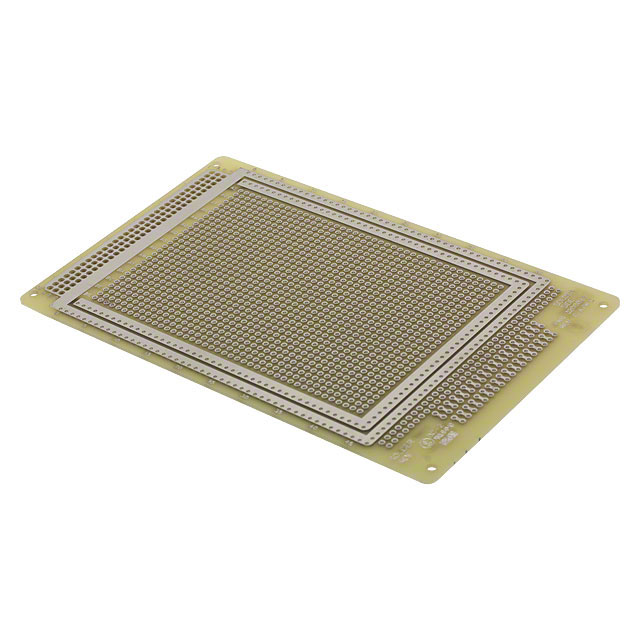

Vector Electronics E160-3U-1	Hard Metric Plugboard	0.042 "	1.07 mm	3.94 in	160 mm	6.3 in	100.1 mm	0.1 "	2.54 mm	1.57 mm	0.062 "	0.0625 in	Pad Per Hole (Round) Ground Plane	Plated Through Hole (PTH)
