PSAS4 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
SAS/PCIE 4.0 (U.2 & U.3) CONNECT
| Part | Mounting Type | Connector Style | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|

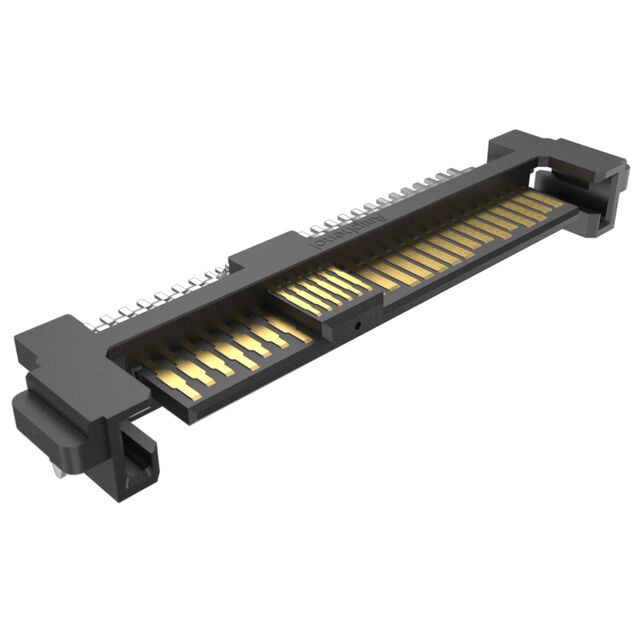

 Amphenol ICC (FCI) | Right Angle Surface Mount | Plug | 68 positions | 30 Áin | 0.76 Ám | SAS/PCIe | Gold | Board Guide Pick and Place Cap Solder Retention | Solder |

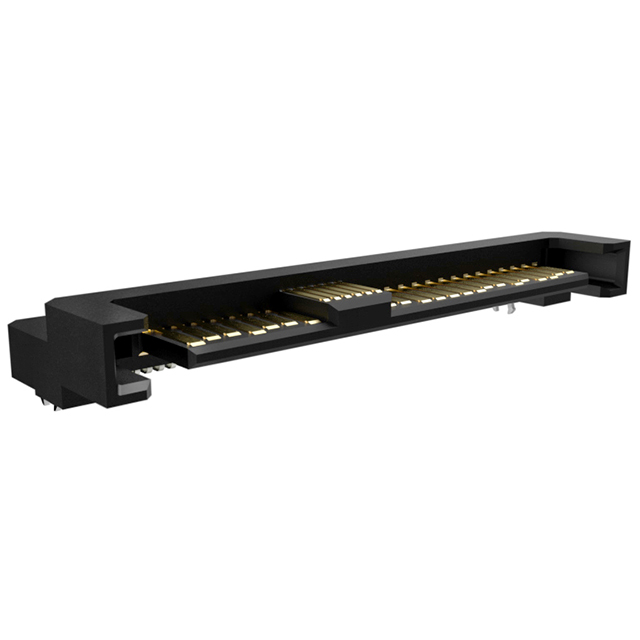

 Amphenol ICC (FCI) | Right Angle Surface Mount | Plug | 68 positions | 30 Áin | 0.76 Ám | SAS/PCIe | Gold | Board Guide Pick and Place Cap Solder Retention | Solder |

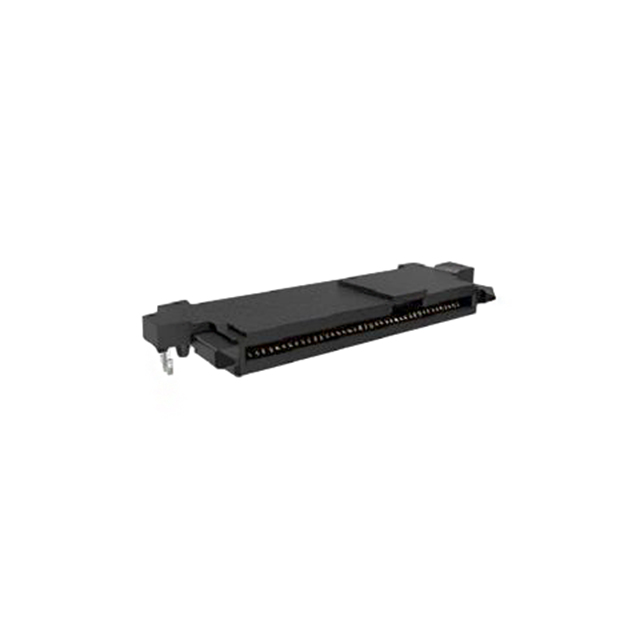

 Amphenol ICC (FCI) | Right Angle Surface Mount | Receptacle | 68 positions | 15 µin | 0.38 µm | SAS/PCIe | Gold | Board Lock Mating Guide Pick and Place Solder Retention | Solder |
