ENG.4B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 30POS GOLD CRIMP
| Part | Shell Size - Insert | Orientation [custom] | Color | Contact Material | Shielding | Mounting Type | Termination | Primary Material | Features | Material Flammability Rating | Ingress Protection | Contact Finish - Mating | Fastening Type | Connector Type | Number of Positions | Current Rating (Amps) | Insert Material | Shell Material | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 330 | G | Silver | Bronze | Shielded | Panel Mount | Crimp | Metal | Ground | UL94 V-0 | IP50 - Dust Protected | Gold | Push-Pull | Receptacle Female Sockets | 30 | 5 A | Polyetheretherketone (PEEK) | Brass | Chrome | 1.5 Ám | 59 Áin | Bulkhead - Rear Side Nut | -55 C | 250 °C |

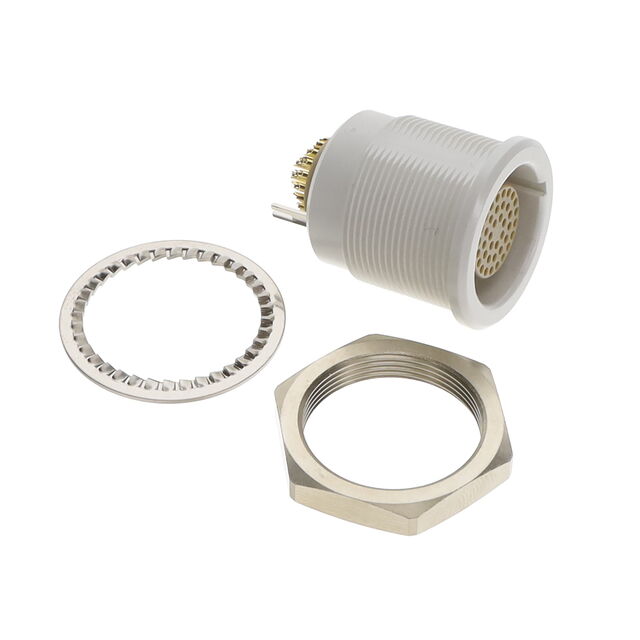

 LEMO | 340 | G | White | Bronze | Shielded | Panel Mount | Plastic | Ground | UL94 V-0 | IP50 - Dust Protected | Gold | Push-Pull | Receptacle Female Sockets | 40 | 2 A | Polyetheretherketone (PEEK) | Polysulfone (PSU) | 1.5 Ám | 59 Áin | Bulkhead - Rear Side Nut | -50 °C | 150 °C |
