1478884 Series

Catalog

CABLE GLAND 4-8MM M16 BRASS

Part	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Material	Thread Size	Includes	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Ingress Protection	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]

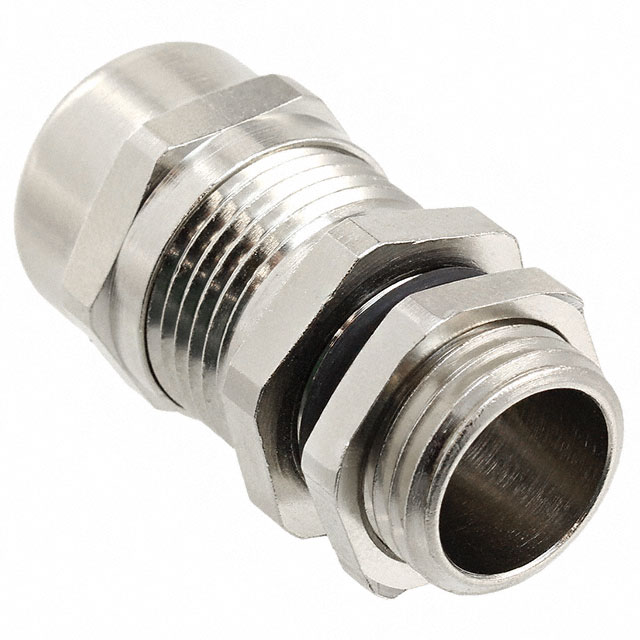

TE Connectivity AMP Connectors 1478884-2	16 mm	0.63 in	4 mm	0.157 in	Silver	Brass Nickel Plated	M16x1.5	Locknut	Cable Gland	8 mm	0.315 in	12 mm	0.472 in	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors 1478884-5	32 mm	1.26 in	13 mm	0.512 in	Silver	Brass Nickel Plated	M32x1.5	Locknut	Cable Gland	18.01 mm	0.709 in	15 mm	0.591 in	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors 1478884-1					Silver	Brass Nickel Plated	M12x1.5	Locknut	Cable Gland			12 mm	0.472 in	IP68 - Dust Tight Waterproof	12 mm	0.472 in	3 mm	0.118 in	6.5 mm	0.256 in
TE Connectivity AMP Connectors 1478884-4	25 mm	0.984 in	10 mm	0.394 "	Silver	Brass Nickel Plated	M25x1.5	Locknut	Cable Gland		0.551 in	12 mm	0.472 in	IP68 - Dust Tight Waterproof					14 mm
