DG4157 Series

Catalog

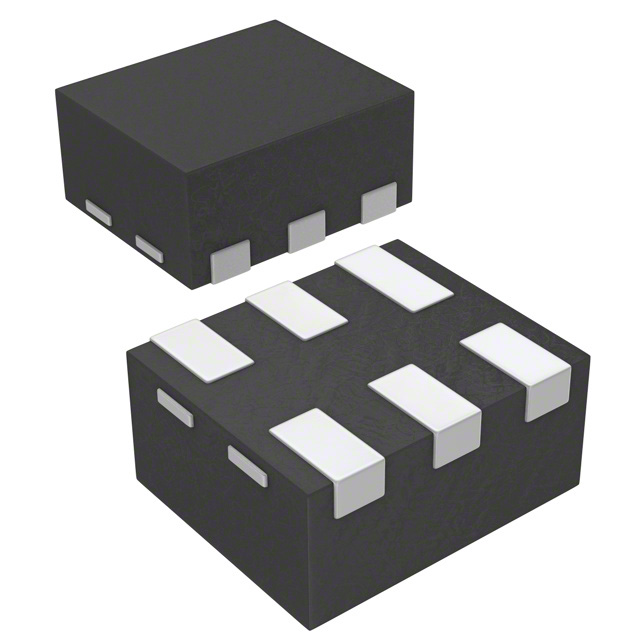

IC SWITCH SPDTX1 1.2OHM 6MINIQFN

Part	Multiplexer/Demultiplexer Circuit	Charge Injection	Switch Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Current - Leakage (IS(off)) (Max) [Max]	Channel-to-Channel Matching (ΔRon) [Max]	Number of Circuits	On-State Resistance (Max) [Max]	-3db Bandwidth	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Vishay General Semiconductor - Diodes Division DG4157DN-T1-E4	2:1	50 pC	SPDT	20 pF	20 pF	1.65 V	5.5 V	2 nA	120 mOhm	1	1.2 Ohm	117 MHz	23 ns	37 ns	-63 dB	Surface Mount	85 °C	-40 °C	6-UFDFN
