09300242 Series
Manufacturer: HARTING
Beta
⌘K

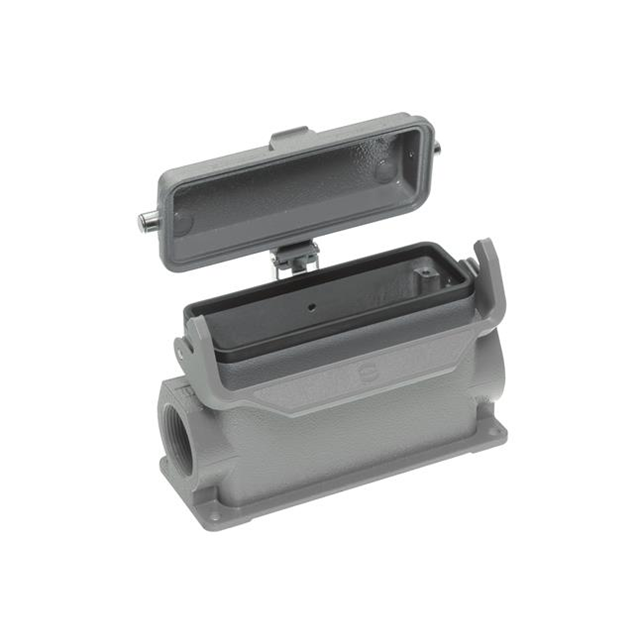

HAN B BASE SURFACE HC 1 LEVER METAL COVE ROHS COMPLIANT: NA
| Part | Thread Size | Connector Type | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Size | Housing Material | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Style | Lock Location | Housing Finish | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | PG29 | Base - Box Mount | Gray | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | 24 B | Aluminum Die Cast | 3.181 in | 57 mm | 80.8 mm | 144 mm | 5.669 in | 2.244 " | Side Entry | Locking Clip (1) on Base Bottom | Powder Coated | ||
 HARTING | PG29 | Base - Box Mount | Gray | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | 24 B | Aluminum Die Cast | 3.181 in | 57 mm | 80.8 mm | 144 mm | 5.669 in | 2.244 " | Side Entry | Locking Clip (2) on Hood | Powder Coated | ||
HARTING | PG21 | Base - Box Mount | Gray | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | 24 B | Aluminum Die Cast | 3.181 in | 57 mm | 80.8 mm | 144 mm | 5.669 in | 2.244 " | Side Entry | Locking Clip (2) on Hood | Powder Coated | ||
HARTING | PG21 | Base - Box Mount | Gray | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | 24 B | Aluminum Die Cast | 2.197 in | 144 mm | 5.669 in | 2.244 " | Side Entry | Locking Clip (1) on Base Bottom | Powder Coated | 55.8 mm | 57 mm |
