XC6805 Series

Catalog

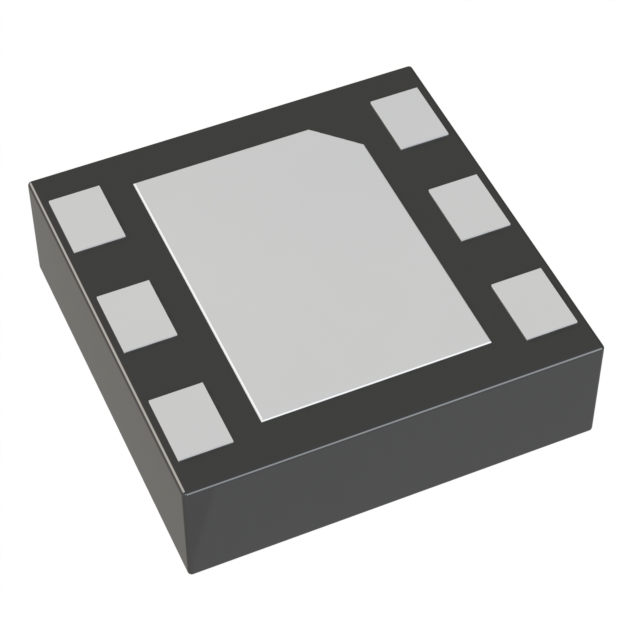

IC BATT CHG LI-ION 1CELL 6USP

Part	Package / Case	Mounting Type	Number of Cells	Charge Current - Max [Max]	Battery Chemistry [custom]	Programmable Features	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current - Charging	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - Supply (Max) [Max]	Battery Pack Voltage
Torex Semiconductor Ltd XC6805B4E18R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable	1.8	6-USP-B07	2	6 V	4.2 V
Torex Semiconductor Ltd XC6805A4D18R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable	1.8	6-USP-B07	2	6 V	4.2 V
Torex Semiconductor Ltd XC6805B2E18R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable	1.8	6-USP-B07	2	6 V	4.2 V
Torex Semiconductor Ltd XC6805A3D14R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable		6-USPEL (1.8x2)		6 V	4.2 V
Torex Semiconductor Ltd XC6805AND14R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable		6-USPEL (1.8x2)		6 V	4.2 V
Torex Semiconductor Ltd XC6805A3E18R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable	1.8	6-USP-B07	2	6 V	4.2 V
Torex Semiconductor Ltd XC6805B3D18R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable	1.8	6-USP-B07	2	6 V	4.2 V
Torex Semiconductor Ltd XC6805A2E14R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage	85 C	-40 ¯C	Constant - Programmable		6-USPEL (1.8x2)		6 V	4.2 V
Torex Semiconductor Ltd XC6805B2D14R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage Reverse Current	85 C	-40 ¯C	Constant - Programmable		6-USPEL (1.8x2)		6 V	4.2 V
Torex Semiconductor Ltd XC6805A4E14R-G	6-XDFN Exposed Pad	Surface Mount	1	40 mA	Lithium Ion/Polymer	Current	Over Current Over Temperature Over Voltage	85 C	-40 ¯C	Constant - Programmable		6-USPEL (1.8x2)		6 V	4.2 V
