CLM-6-30 Series

Catalog

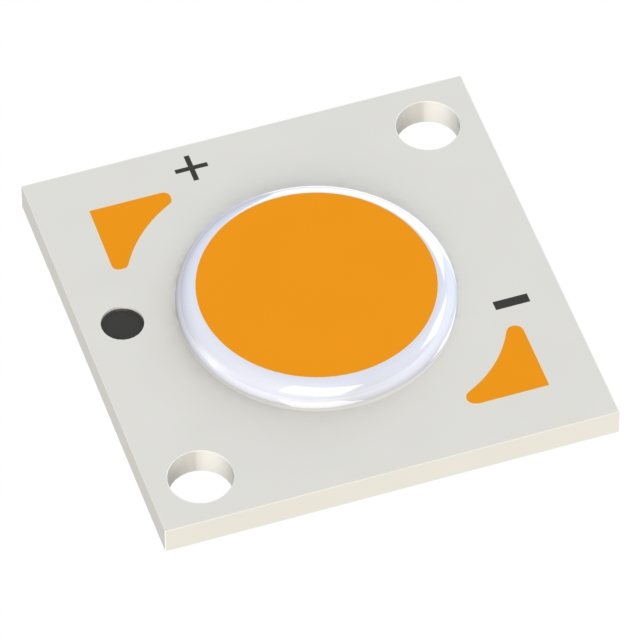

WHITE LEDS WHITE 3000 K 80-CRI, CLM-6 SERIES

Part	Viewing Angle	Current - Test	Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Temperature - Test	Current - Max [Max]	Height [z]	Color	Configuration	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	CCT (K)	CCT (K)
Luminus Devices Inc. CLM-6-30-80-27-AA02-F2-2	120 °	120 mA	Chip On Board (COB)	330 lm	102 lm/W	80	13 mm	12 mm	Flat	85 °C	240 mA	1.37 mm	Warm White	Rectangle	6.3 mm	27 V	3000 K
Luminus Devices Inc. CLM-6-30-95-9-AA00-F2-2	120 °	360 mA	Chip On Board (COB)	260 lm	80 lm/W	95	13 mm	13 mm	Flat	85 °C	750 mA	1.37 mm	Warm White	Square	6.3 mm	9 V	3000 K
Luminus Devices Inc. CLM-6-30-80-18-AA00-F2-3	120 °	180 mA	Chip On Board (COB)	330 lm	102 lm/W	80	13 mm	13 mm	Flat	85 °C	360 mA	1.37 mm	Warm White	Square	6.3 mm	18 V	3000 K	3-Step MacAdam Ellipse
Luminus Devices Inc. CLM-6-30-95-18-AA00-F2-2	120 °	180 mA	Chip On Board (COB)	260 lm	80 lm/W	95	13 mm	13 mm	Flat	85 °C	360 mA	1.37 mm	Warm White	Square	6.3 mm	18 V	3000 K
Luminus Devices Inc. CLM-6-30-80-18-AA02-F2-3	120 °	180 mA	Chip On Board (COB)	330 lm	102 lm/W	80	13 mm	12 mm	Flat	85 °C	360 mA	1.37 mm	Warm White	Rectangle	6.3 mm	18 V	3000 K	3-Step MacAdam Ellipse
Luminus Devices Inc. CLM-6-30-80-27-AA02-F2-3	120 °	120 mA	Chip On Board (COB)	330 lm	102 lm/W	80	13 mm	12 mm	Flat	85 °C	240 mA	1.37 mm	Warm White	Rectangle	6.3 mm	27 V	3000 K	3-Step MacAdam Ellipse
