OSTVI04 Series

Catalog

TERM BLK 4POS SIDE ENT 7.5MM PCB

Part	Wire Termination	Features	Number of Levels	Screw Material - Plating	Pitch [x]	Pitch [x]	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Housing Material	Wire Gauge [Min]	Wire Gauge [Max]	Color	Current	Mating Orientation	Mounting Type	Positions Per Level	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Voltage

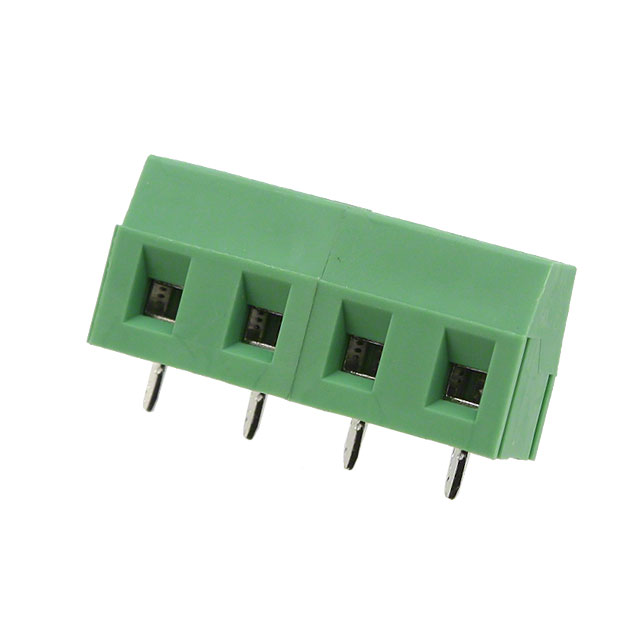

On Shore Technology Inc. OSTVI044152	Screw - Rising Cage Clamp	Interlocking (Side)	1	Steel Zinc Plated	0.295 in	7.5 mm	Brass	-30 ░C	105 ░C	M3	Thermoplastic	12 AWG	28 AWG	Green	16 A	Horizontal with Board	Through Hole	4	0.4 Nm	3.5 Lb-In	Brass	300 V
On Shore Technology Inc. OSTVI044150	Screw - Rising Cage Clamp	Interlocking (Side)	1	Steel Zinc Plated	0.295 in	7.5 mm	Brass	-30 ░C	105 ░C	M3	Thermoplastic	12 AWG	28 AWG	Green	16 A	Vertical with Board	Through Hole	4	0.4 Nm	3.5 Lb-In	Brass	300 V
