SLE48S1203 Series

Catalog

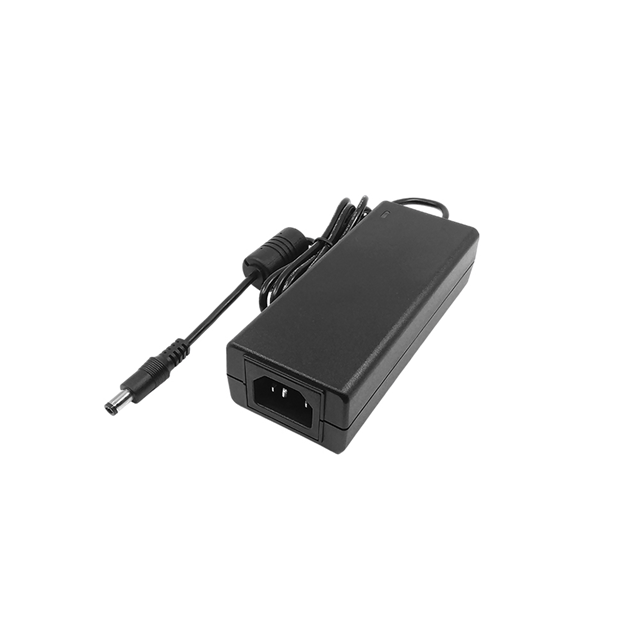

AC/DC DESKTOP ADAPTER 12V 48W

Part	Region Utilized	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Output	Efficiency	Applications	Cord Length	Cord Length	Form	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Current - Output (Max) [Max]
SL POWER / Advanced Energy SLE48S1203F01	International	IEC 320-C14 IEC 320-C18 IEC 320-C6	264 VAC	90 VAC	60601-1; 62368-1	51 mm	122 mm	2.01 "	31.5 mm	1.24 "	4.8 in	Cord (Sold Separately)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	12 V	CoC Tier 2 Level VI	ITE (Commercial) Medical	1.5 m	59 in	Desktop (Class I) Desktop (Class II)	Positive Center	40 °C	0 °C	CB CCC CE CSA cULus cURus GS KC TUV UL	48 W	4 A
SL POWER / Advanced Energy SLE48S1203N01	International	IEC 320-C8	264 VAC	90 VAC	60601-1; 62368-1	51 mm	122 mm	2.01 "	31.5 mm	1.24 "	4.8 in	Cord (Sold Separately)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	12 V	CoC Tier 2 Level VI	ITE (Commercial) Medical	1.5 m	59 in	Desktop (Class II)	Positive Center	40 °C	0 °C	CB CCC CE CSA cULus cURus GS KC TUV UL	48 W	4 A
