M33312 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

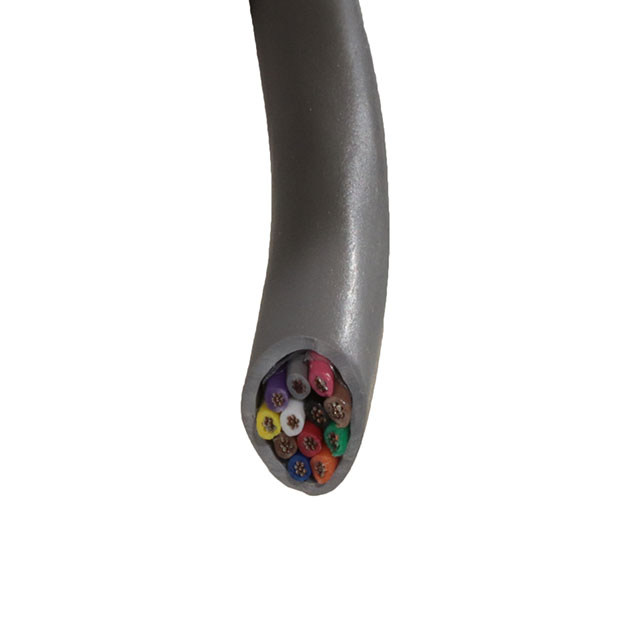

CABLE 12COND 22AWG SLATE
| Part | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Voltage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 22 AWG | Poly-Vinyl Chloride (PVC) | Slate | 300 VDC | 152.4 m | 500 ft | 28 AWG | 7 | 12 | Multi-Conductor | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.813 mm | 0.032 in | 6.99 mm | 0.275 in | UL Style 2576 |
