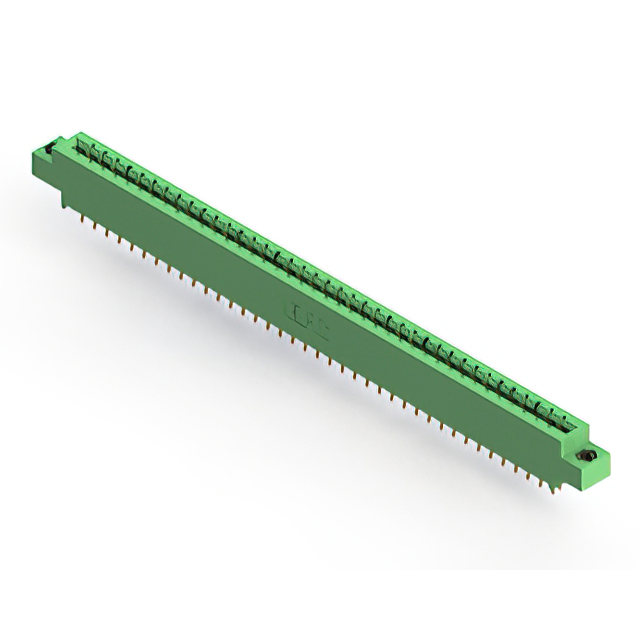

833-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 78POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Pitch | Pitch | Contact Material | Number of Positions | Contact Finish | Mounting Type | Number of Rows [custom] | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Right Angle Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Board Edge Straddle Mount | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | Card Extender | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 125 °C | -40 C | Solder Eyelet(s) | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 C | Solder Eyelet(s) | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Right Angle Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | 125 °C | -40 C | Solder | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | 125 °C | -40 C | Wire Wrap | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 39 | 3.96 mm | 0.156 in | Copper Alloy | 78 | Gold | Through Hole | 2 | Cantilever | Female | 0.25 Ám | 10 Áin | Green |
